Board-to-Board Fit: 12 Positions, Dual-Row, 0.100" Pitch

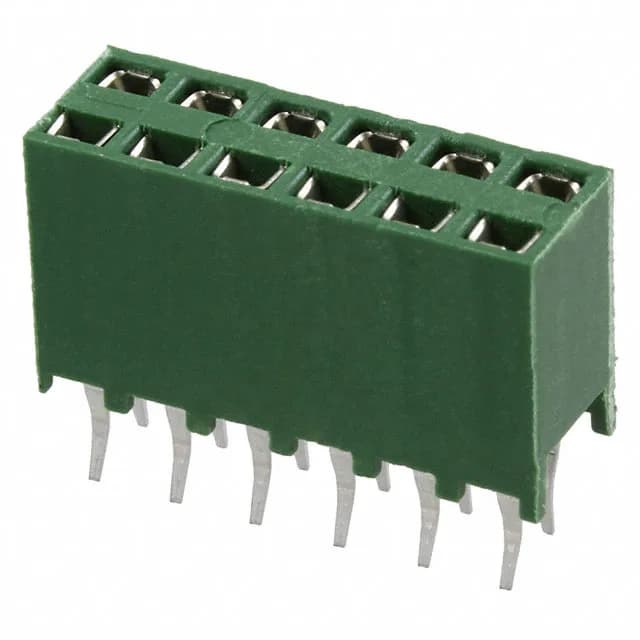

The 215309-6: The through-hole kinked pin termination locks the part into the PCB during wave solder, preventing float and keeping the mated stack height consistent.
No official pin-compatible equivalent or successor is listed by the manufacturer. The AMPMODU HV-100 series includes other position counts, but a 12-position dual-row receptacle with 0.100" pitch and gold finish is specific to this order code.
This receptacle accepts square pins from a matching AMPMODU HV-100 header with 0.025" square post. The contact length post is 0.122" (3.10 mm), and the post finish is tin with 98.4 µinch (2.50 µm) thickness — adequate for solder joint wetting.
