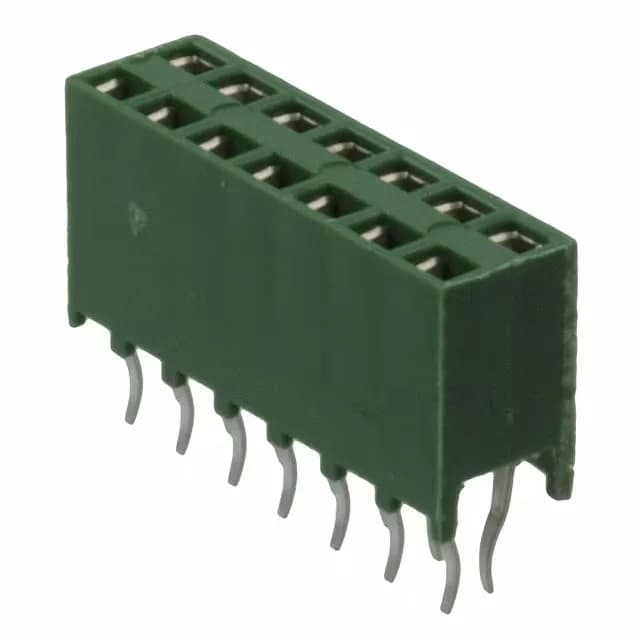

TE Connectivity AMP Connectors AMPMODU HV-100, 14-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole, kinked pin solder termination, gold mating finish, green UL94 V-0 polyester housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The mating finish is 31.5 µinch (0.80 µm) gold over the phosphor bronze contact, with a tin post finish for solderability.
The contact length after the board is 0.122" (3.10 mm) — this is the solder tail length that protrudes through the PCB. The kinked pin provides a press-fit retention force during wave soldering, keeping the connector seated until the solder solidifies.
