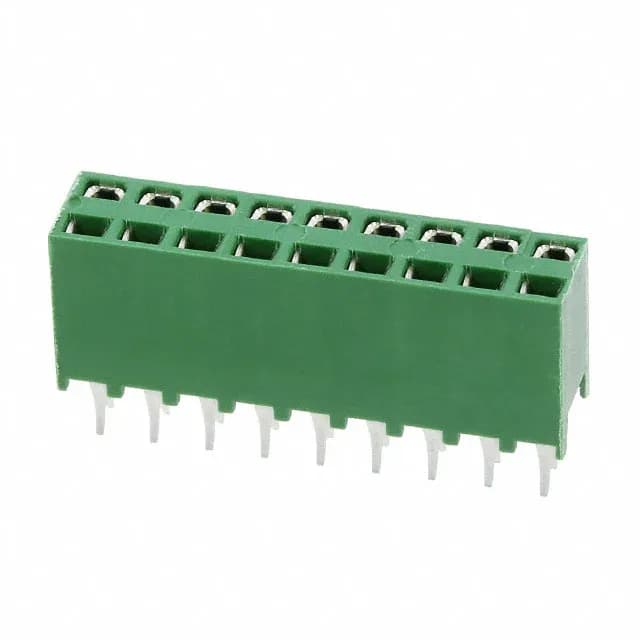

TE Connectivity AMP Connectors, AMPMODU HV-100 series, 18-position dual-row female socket header, 0.100" (2.54mm) pitch, gold mating finish, through-hole solder termination, UL94 V-0 rated.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The post tails are tin-plated (98.4µin / 2.50µm) for good solderability to the PCB. Phosphor bronze contact material provides spring retention without fatigue.
Insulation height is 0.335" (8.51mm), and the post length of 0.122" (3.10mm) suits standard PCB thicknesses. The housing is glass-filled polyester rated UL94 V-0.
The header must have 18 positions and a 0.100" row spacing. Gold or tin plating on the header is acceptable, but gold-to-gold mating is preferred for high-cycle applications.
The current rating is not listed in the available specifications. For the AMPMODU HV-100 series, typical per-contact current is 3 A at 25°C, but confirm with the datasheet or TE for your specific application.
Yes, the 215309-9 is RoHS3 compliant.
The 1376775-2 is a 5-position, not 18-position, receptacle from the same AMPMODU HV-100 series. It shares the 0.100" pitch and gold mating finish but is not a functional replacement for 215309-9 due to the different circuit count.
