0.100" pitch, 6-position, right-angle receptacle
Tin-plated forked contacts rated 100 VDC.
Temp range and flammability for automotive and general duty
The UL94 V-0 rated PBT housing means it passes the flame test for equipment inside an enclosure.

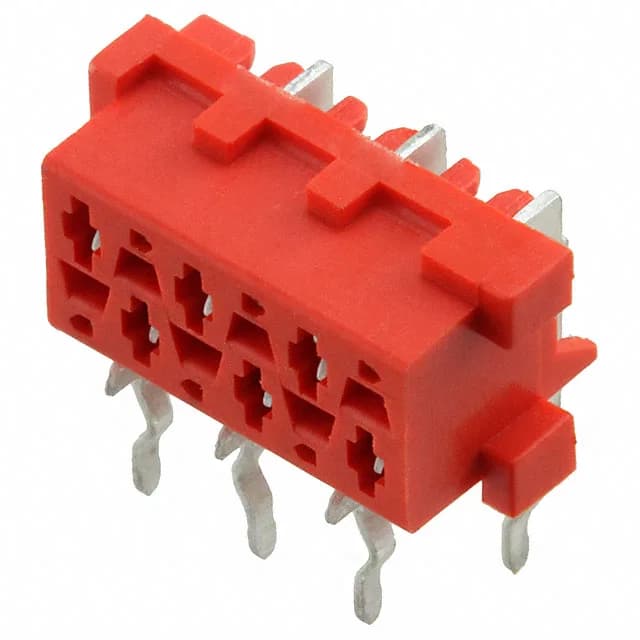

215460-6 TE Connectivity Micro-MaTch 6-Pin Right-Angle
MPN215460-6
Active
TE Connectivity AMP Connectors Micro-MaTch receptacle, 215460-6, 6 positions, 2 rows, 0.100" (2.54mm) pitch, through hole right-angle, tin-plated forked contacts, UL94 V-0 housing, -40°C to 105°C operating range.
$0.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the pitch of TE Connectivity 215460-6?
The pitch is 0.100" (2.54mm) on both the mating and row spacing.
Is 215460-6 RoHS compliant?
Yes, it is ROHS3 compliant.
What is the mounting type of 215460-6?
Through hole, right-angle — the connector body sits perpendicular to the board surface.
