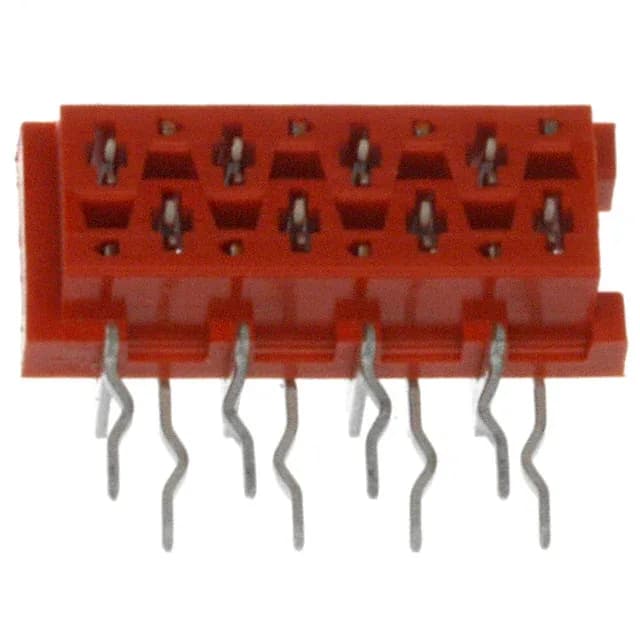

TE Connectivity AMP Micro-MaTch receptacle, 8 positions, 0.100" (2.54mm) pitch, tin-plated forked contacts, right-angle through-hole with kinked solder pins, red PBT housing, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 215460-8: The UL94 V-0 glass-filled PBT housing holds up to the flame-rating requirement inside an equipment enclosure. In a high-vibration application, consider a locking-header mate or a secondary retention method.
RoHS compliant.
For an 8-position drop-in, no direct second-source is listed — the 215460-8 is the primary TE part for that position count.
