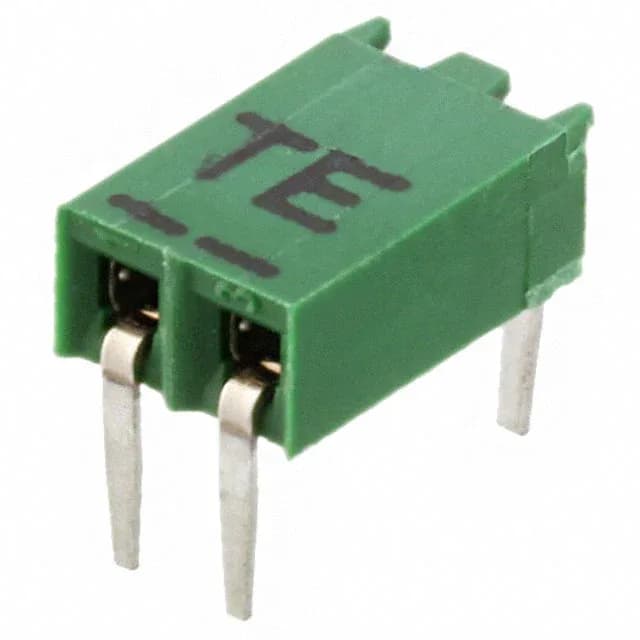

TE Connectivity AMP Connectors AMPMODU HV 190, 216602-2, Board to Board, 2 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Finish, Green Insulation, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.126\" (3.20mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 216602-2: Mating contacts are gold-plated (31.5µin / 0.80µm) for corrosion resistance and moderate cycle life; the post tails are tin-plated (118.1µin / 3.00µm) for reliable solder wetting.
Supplied in tray packaging. The base product number is 216602; the -2 suffix denotes the 2-position variant with all positions loaded.
Yes, 216602-2 is ROHS3 compliant.
