4-position right-angle receptacle for board-to-board stacking
It mates with standard 0.100-inch pitch pin headers.
Gold mating surface for repeated connect cycles
The mating contacts are finished with 31.5 µinch (0.80 µm) gold over phosphor bronze.

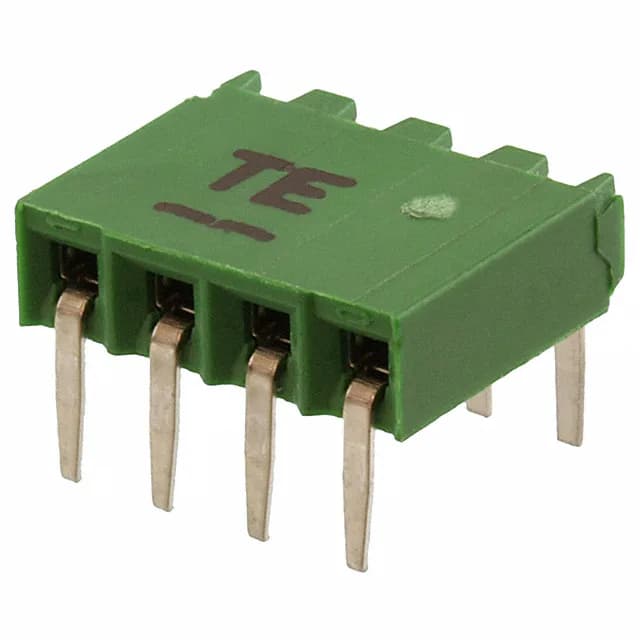

216602-4 TE Connectivity AMPMODU HV 190 4-Pos Receptacle
MPN216602-4
Active
TE Connectivity AMP Connectors AMPMODU HV 190, 216602-4, 4-position single-row receptacle, 0.100" (2.54 mm) pitch, gold mating finish, right-angle through-hole, UL94 V-0, RoHS
$2.0200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU HV 190
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.126\" (3.20mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Product details
Frequently asked questions
What is the pitch of TE Connectivity 216602-4?
The mating pitch is 0.100 inch (2.54 mm), single row, 4 positions loaded.
Is 216602-4 compatible with AMPMODU headers?
Yes, it is part of the AMPMODU HV 190 series and mates with standard 0.100-inch pitch pin headers. Confirm the header's pin length and orientation (right-angle vs straight) for your stack-up.
What is the height of 216602-4 receptacle?
The insulation height above the PCB is 0.126 inch (3.20 mm). The post length below the board is also 0.126 inch (3.20 mm).
