Board-to-board receptacle for 6-position headers

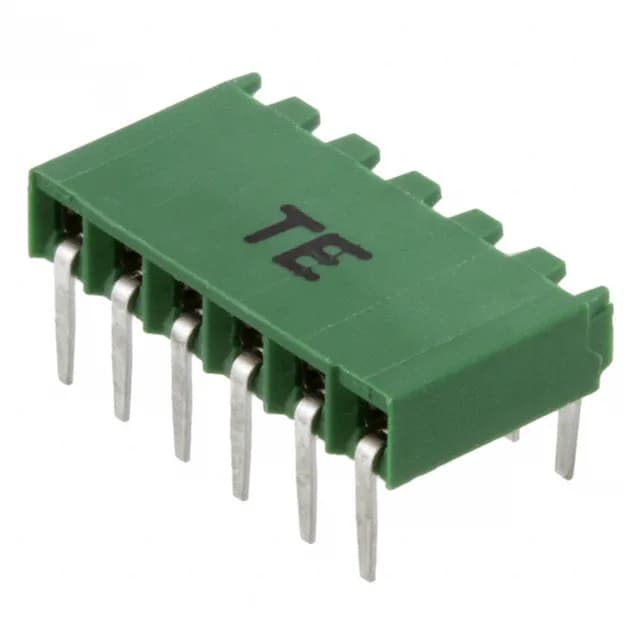

The 216602-6: The right-angle through-hole termination keeps the board-edge profile low — the post length is 0.126" (3.20mm) and the insulation height is the same, so the connector sits tight to the PCB surface.
Pitch, position count, and plating choices
At 0.100" pitch, this receptacle matches the industry-standard 2.54mm grid — the footprint is shared with any 0.100" male header, not just TE's own AMPMODU line. The 6-position single-row layout is loaded all positions; the phosphor bronze contacts are tin-plated on the post (118.1µin / 3.00µm) for solderability and gold-plated on the mating face for corrosion resistance in non-sealed environments.
Mating header and board layout fit
Mates with any 0.100" square-pin male header of the same position count and single-row layout — typical candidates include the TE AMPMODU 5-826629-6 or generic 0.100" breakaway headers.
