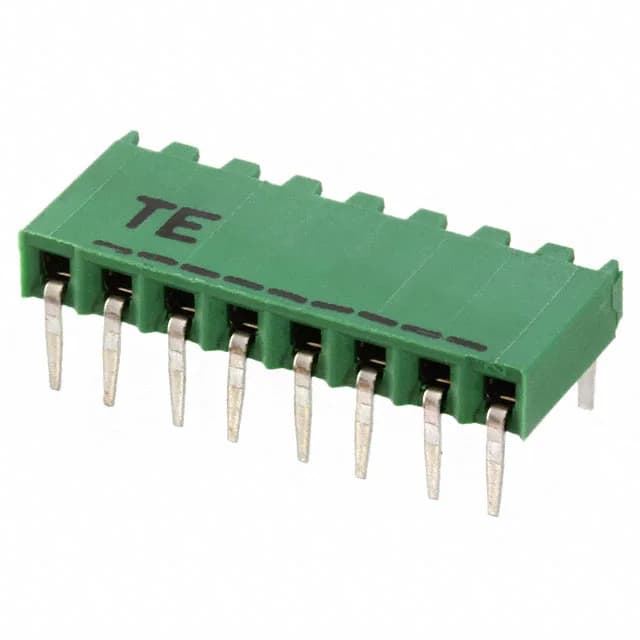

TE Connectivity AMP Connectors AMPMODU HV 190, 216602-8, 8-position single-row receptacle, 0.100" (2.54mm) pitch, gold mating finish, right-angle through-hole solder termination, green polyester glass-filled housing, UL94 V-0, tray pack.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.126\" (3.20mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The mating interface is gold-plated at 31.5µin (0.80µm) over phosphor bronze contacts, while the solder tails get a tin finish at 118.1µin (3.00µm). The 1-2823056-2 is a 12-position dual-row surface-mount receptacle with tin mating finish, so it's a different footprint and termination style entirely.
Yes, the 216602-8 is RoHS compliant per the manufacturer's listing.
The 216602-8 is a receptacle that mates with a 0.100" pitch, 8-position single-row pin header from the AMPMODU HV 190 series. The mating header must have square pins and a push-pull fastening type.
The 1376775-2 (5-position) and 1376775-3 (3-position) are the same series and finish but lower position counts. For a different form factor, the 1-2823056-2 is a 12-position dual-row surface-mount receptacle with tin mating finish.
