Board-to-board receptacle, 6 positions, 2.54 mm pitch
The 216604-3: Gold-plated mating contacts on phosphor bronze terminals support repeated mating cycles; the through-hole right-angle orientation suits board-edge or parallel-PCB layouts.

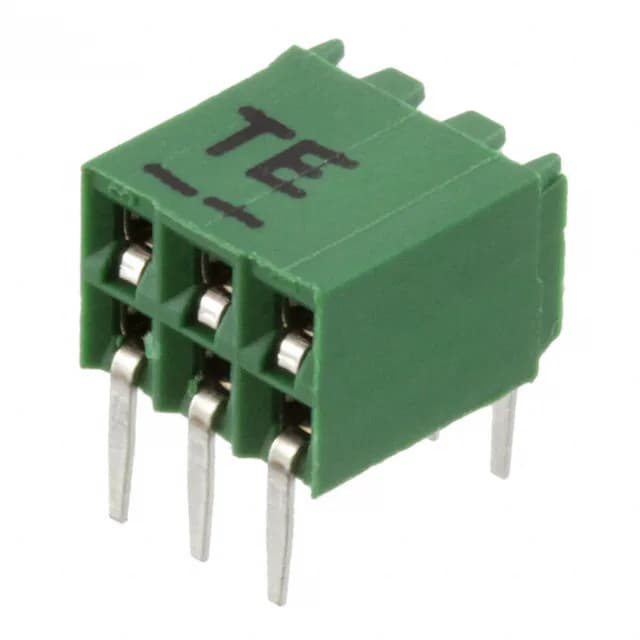

216604-3 TE AMPMODU HV 190 Receptacle, 6 Pos, 2.54mm
MPN216604-3
Active
TE Connectivity AMPMODU HV 190 receptacle, order code 216604-3, 6 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 216604-3?
RoHS and REACH compliance documentation is available from TE Connectivity.
