Board-to-board receptacle, 8 circuits, 0.100" pitch
The 216604-4: Gold-plated mating contacts and a UL94 V-0 rated glass-filled polyester housing suit it for signal-level board stacking where the right-angle orientation keeps the cable path low.

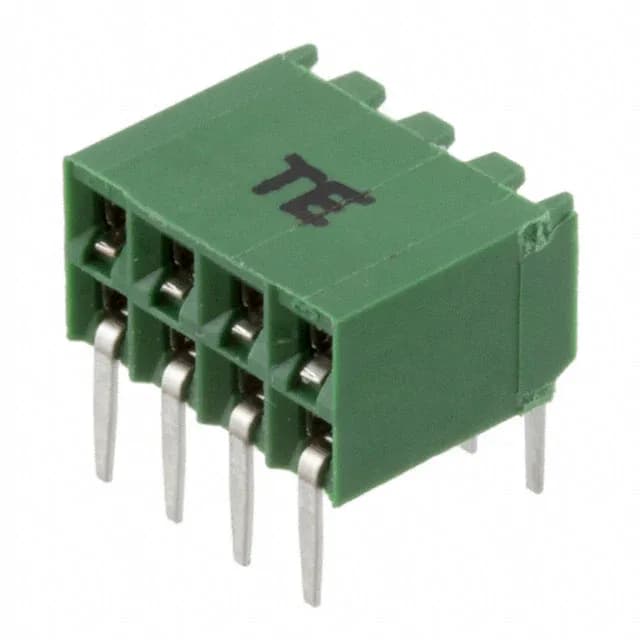

216604-4 TE Connectivity AMPMODU HV 190 Receptacle 8 Pos
MPN216604-4
Active
TE Connectivity AMPMODU HV 190 receptacle, order code 216604-4, 8 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, right-angle through-hole, solder termination.
$2.5100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU HV 190
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Product details
Frequently asked questions
Where can I buy the 216604-4 and get a price?
The 216604-4 is orderable under the listed part number. Pricing and lead time are provided on request against the required quantity.
Will the 216604-4 drop into a panel specified around the 1376775-2?
No — the 216604-4 is an 8-position receptacle; the 1376775-2 is a 5-position receptacle.
What compliance documentation does TE Connectivity provide for the 216604-4?
The 216604-4 is ROHS3 Compliant.
