Board-to-board receptacle, 10 positions

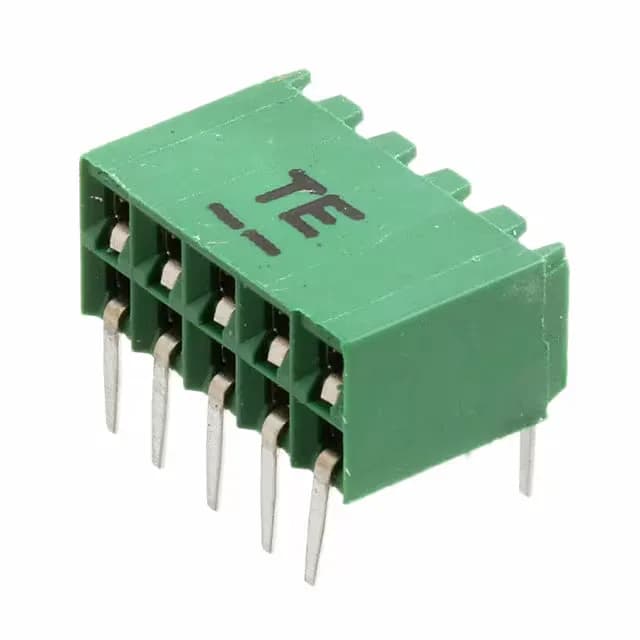

The 216604-5 is the 10-position dual-row member of TE's AMPMODU HV 190 board-to-board receptacle line. Mating contacts are gold-plated (31.5 µin, 0.80 µm) on phosphor bronze; the post finish is tin (118.1 µin, 3.00 µm). The housing is glass-filled polyester rated UL94 V-0.
Position count and footprint
The 216604-5 carries 10 positions loaded across two rows at 0.100" (2.54 mm) pitch, with the same row spacing. The through-hole right-angle mounting and 0.126" (3.20 mm) post length suit board-edge placement where the mating axis runs parallel to the PCB.
