TE Connectivity AMP Connectors 216604-6 — Female Socket Headers

216604-6 TE Connectivity AMPMODU HV 190 12-Pin Right-Angle

MPN216604-6
Active

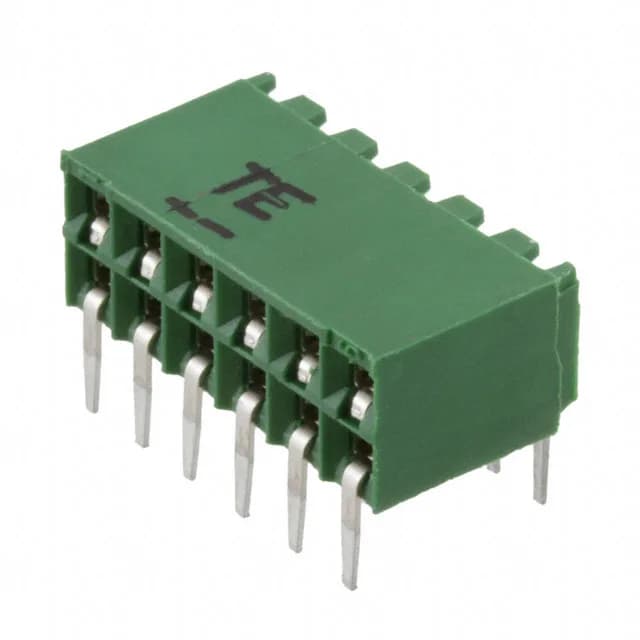

TE Connectivity AMPMODU HV 190, 216604-6, 12-position dual-row 0.100" (2.54 mm) pitch right-angle through-hole receptacle, gold mating finish, UL94 V-0 green polyester housing, tray.

$3.0900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU HV 190
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

216604-6 key specifications
ParameterValue
SeriesAMPMODU HV 190
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGreen
Insulation height0.228\" (5.80mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTray

All specifications

216604-6 additional specifications
ParameterValue
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

The 216604-6 is a 12-position, dual-row, right-angle through-hole receptacle from the AMPMODU HV 190 series. The gold mating finish (31.5 µinch over phosphor bronze) gives this connector a solid 500-plus mating cycle life in moderate-duty board-to-board interconnects. For a production run where the boards are mated once at assembly, that is overkill — but it also handles field-replaceable modules where the connector sees a few dozen cycles over the product life. The 0.126" solder-tail length is a standard through-hole length for 1.6 mm boards.

The row spacing is also 0.100", so the pinout is a 2×6 grid on a 2.54 mm pitch in both axes.

Sourcing and lifecycle — active, RoHS, and how to buy

Frequently asked questions

What is the mating header for the 216604-6?

It mates with any 0.100" pitch, dual-row, square-pin pin header. The push-pull retention means there is no latch — if vibration is a concern, consider a header with a locking feature.

Can the 216604-6 be replaced by the 216604-8?

The 216604-8 is a 16-position version of the same series with identical pitch, plating, and orientation. It is a drop-in replacement only if the design can accommodate four extra circuits — the footprint length increases by two positions per row.
