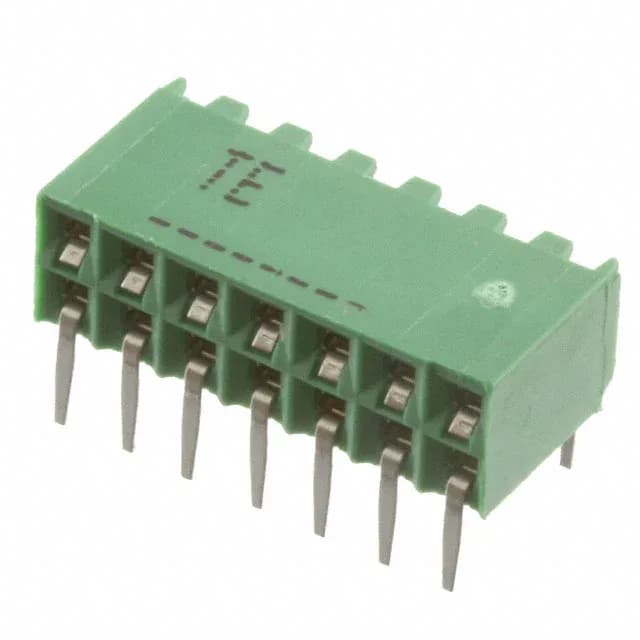

TE Connectivity AMPMODU HV 190, 14-position dual-row receptacle, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle termination, bulk package.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 216604-7: Mating contacts are gold-plated (31.5 µinch / 0.80µm) over phosphor bronze, providing corrosion resistance and reliable electrical contact across repeated mating cycles.
Solder tails are tin-plated (118.1 µinch / 3.00µm) for reliable soldering to the PCB; the post length of 0.126" (3.20mm) suits standard through-hole boards.
The 216604-7 is sourced through independent distribution. Availability and lead time are confirmed at RFQ against your specific quantity — no stock-holding claim is made here. Submit a quote request to check current pricing and delivery.
Yes, it is RoHS compliant.
