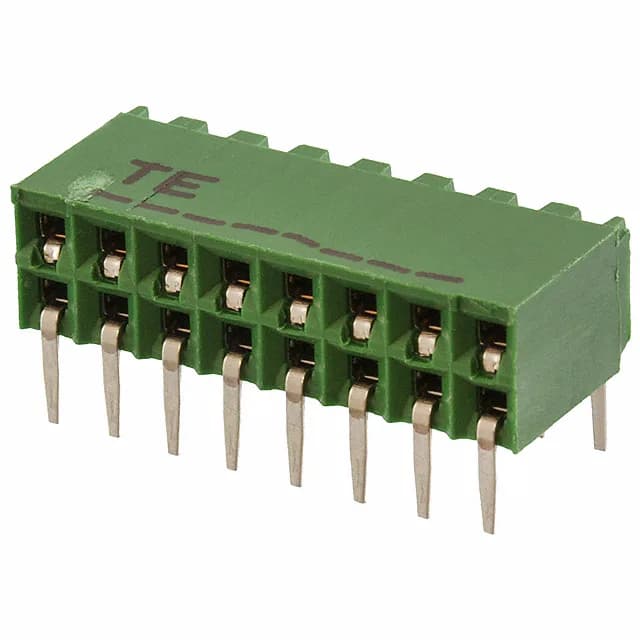

TE Connectivity AMP Connectors AMPMODU HV 190 series, 216604-8: 16-position dual-row female socket receptacle, 0.100" (2.54 mm) pitch, through-hole right-angle mounting, gold-plated mating contacts, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
All 16 positions are loaded, giving you a full dual-row 2x8 layout. The push-pull fastening means no secondary locking hardware — the receptacle slides onto the header pins and holds by friction, which is fine for low-vibration bench or panel applications.
The solder tails are tin-plated at 118.1 µinch (3.00 µm), which wets well in wave solder and matches the standard tin finish on most PCB pads.
No stock-holding claim; quoted per RFQ.
It mates with any 16-position dual-row 0.100" header, such as the TE 1-826629-6 or similar BergStik II series headers.
