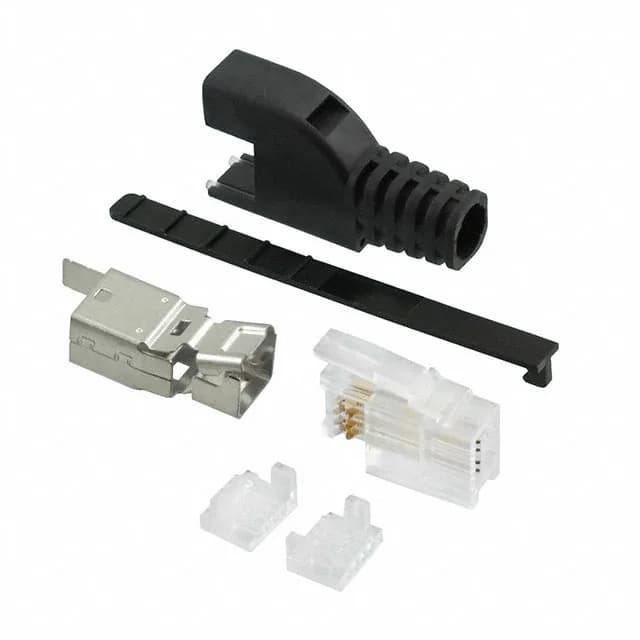

Shielded Cat5e RJ45 Plug for Stranded Cable
It carries a Cat5e rating, meaning it supports 100 MHz signaling for 1000BASE-T and similar Ethernet standards. The IDC termination pierces each conductor's insulation in one operation — no wire stripping or soldering needed on the line. The translucent clear polycarbonate housing lets you visually confirm the wire pair positions and the IDC termination depth through the body. The stainless steel shield wraps the plug body and mates with the jack's shield contact to bleed EMI before it reaches the signal pairs.
What the Cat5e Rating Means for Cable Choice
This plug is rated Cat5e, not Cat6. That means it is verified for 100 MHz bandwidth and the near-end crosstalk (NEXT) limits of the Cat5e standard. It will not reliably pass a Cat6 channel test at 250 MHz, even if terminated onto Cat6 cable. For a Cat6-rated link, you need a plug explicitly certified to that higher frequency ceiling. The IDC termination is designed for stranded wire only — the insulation displacement slot geometry does not grip solid conductors reliably. If your cable run uses solid-core horizontal cable, this plug is not the correct termination; a punch-down jack or a plug designed for solid wire is needed.
