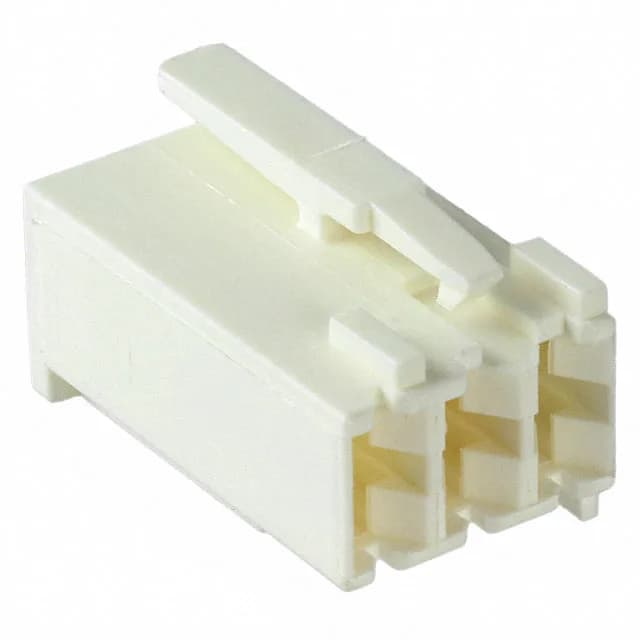

TE Connectivity Standard Timer receptacle housing, 2178029-3, 3 positions, 1 row, 5.00mm pitch, free hanging, latch lock, natural PA66, crimp termination, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Standard Timer |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
The crimp barrel is the same across the series, so the same terminal PN serves multiple cavity counts.
The 1-2069882-6 is a 6-position, dual-row receptacle from the same Standard Timer family, at a slightly wider 5.08 mm pitch and with a 0.300" (7.62 mm) row spacing.
No, the housing ships without contacts — the female blade socket terminals must be ordered separately.
The pitch is 0.197" (5.00 mm).
