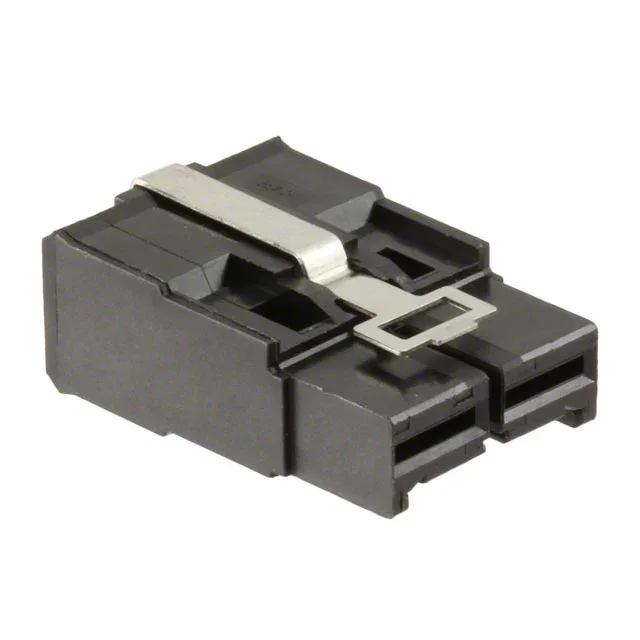

2178186-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 2178186-4 Receptacle, 2 Pos, 7.80mm, Latch Lock, 500V

MPN2178186-4
Active

TE Connectivity 2178186-4 receptacle housing, 2 positions, 7.80 mm pitch, 1 row, latch lock, free hanging, crimp termination, 500 V, -40°C to 105°C, black PBT, contacts not included, tray.

$2.6900Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2178186-4 Technical Specifications
ParameterValue
GenderFemale Blade Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Voltage rating500 V
Operating temperature-40°C ~ 105°C
ColorBlack
Material - insulationPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.307\" (7.80mm)
PackageTray
FeaturesStackable
Rows1
Stacking directionSide to Side
Contact terminationCrimp
Positions2

Product details

Power Receptacle Housing — 2 Circuits, 7.80 mm Pitch

You must order the matching female blade socket crimp terminals separately. The crimp termination allows you to terminate wires (typically 14-18 AWG for this pitch class) before inserting them into the housing cavities.

Stackable Side-to-Side for Multi-Position Assemblies

The housing is stackable side-to-side, meaning multiple 2-position housings can be ganged together to create a larger multi-position connector assembly without a custom overmold. This is useful when you need 4, 6, or more positions but want to use standard 2-position building blocks. The 7.80 mm pitch per position is maintained across the stack.

Frequently asked questions

Where can I buy 2178186-4?

2178186-4 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your BOM quantity.

Does 2178186-4 include contacts?

No — contacts are not included. The 2178186-4 is a receptacle housing only; you must order the matching female blade socket crimp terminals separately.

Is 2178186-4 stackable?

Yes, the housing is designed for side-to-side stacking, allowing multiple 2-position housings to be ganged together for multi-position assemblies.

What is the mating connector for 2178186-4?

This is a receptacle housing that mates with a corresponding plug housing in the same 7.80 mm pitch power connector family. The specific mating part number depends on the circuit count and keying required for your application.
