TE Connectivity AMP Connectors 2178438-1
MPN2178438-1
Active

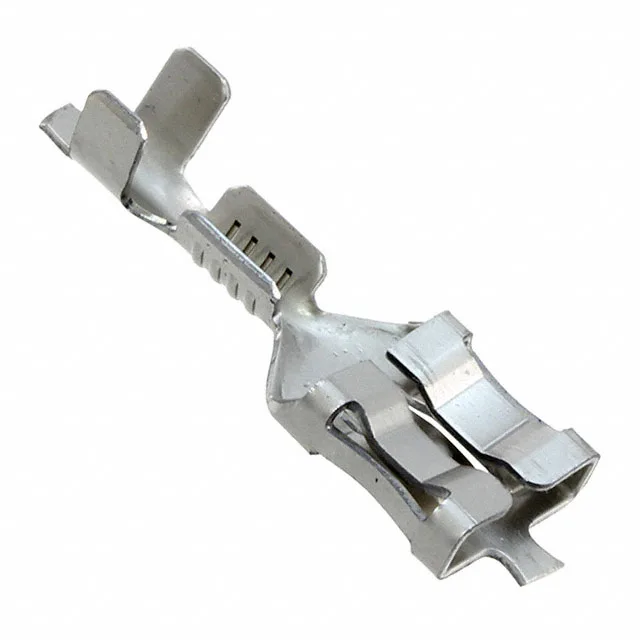

6.3 SRS F-SPRING LIF RECEPTACLE
$0.15Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 20-24 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Steel |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Insulation | Non-Insulated |
| Tab length | 0.276\" (7.01mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Nickel |
| Length - overall | 0.748\" (19.00mm) |
| Insulation diameter | 0.055\" ~ 0.083\" (1.40mm ~ 2.11mm) |
