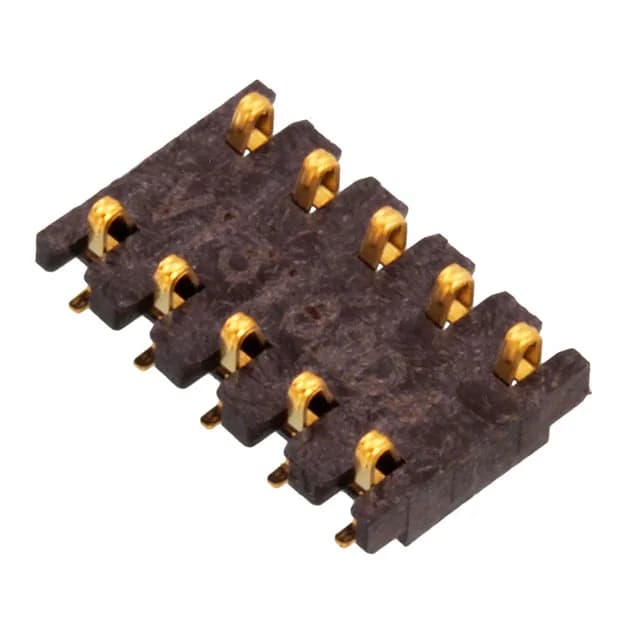

TE Connectivity AMP Connectors compression contact, order code 2199035-2, 10 contacts, dual row, 0.063" (1.60mm) pitch, 0.134" (3.40mm) row spacing, gold-plated contacts, surface mount, Tape & Reel packaging.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Connector type | Compression Contact, Non-Gendered |
| Positions | 10 |
| Material | Copper Alloy |
| Pitch | 0.063\" (1.60mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Row spacing | 0.134\" (3.40mm) |
| Contact finish | Gold |
| Rows | 2 |
| Contact finish thickness | 3.94µin (0.10µm) |
The 2199035-2 is a 10-contact, dual-row compression contact from TE Connectivity AMP Connectors, using a non-gendered compression interface that eliminates the need for a separate mating connector half. Contacts are gold-plated copper alloy, mounted surface-mount for direct board placement without through-hole soldering.
The contact finish thickness is 3.94µin (0.10µm) of gold over the copper alloy base material.
