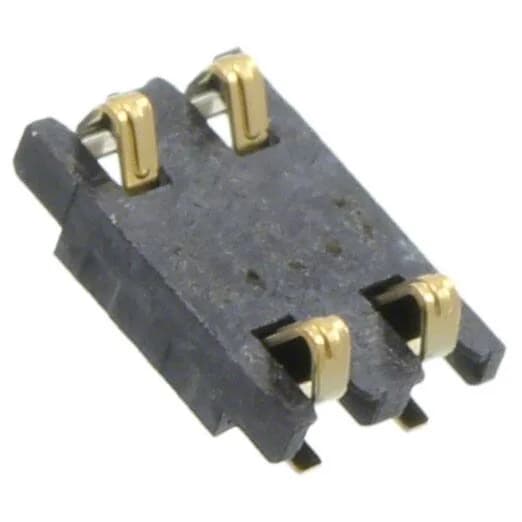

TE Connectivity AMP Connectors compression contact, non-gendered, order code 2199172-1, 4 contacts, dual row, 0.063" (1.60mm) pitch, gold-plated phosphor bronze, surface-mount solder termination.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Connector type | Compression Contact, Non-Gendered |
| Positions | 4 |
| Material | Phosphor Bronze |
| Pitch | 0.063\" (1.60mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Row spacing | 0.087\" (2.20mm) |
| Contact finish | Gold |
| Rows | 2 |
| Contact finish thickness | 3.94µin (0.10µm) |
The 2199172-1 is a 4-circuit, non-gendered compression contact from TE Connectivity AMP Connectors, arranged in a dual-row layout at 0.063" (1.60mm) pitch. Gold-plated phosphor bronze contacts with 3.94µin (0.10µm) finish suit low-level signal paths where corrosion resistance matters; the surface-mount termination keeps the board-side profile low.
No pin-compatible same-series peer is listed for a direct swap.
The 2199172-1 is offered in Tape & Reel (TR) and Cut Tape (CT) packaging.
