TE Connectivity AMP Connectors 2204748-8 — Connector Housings

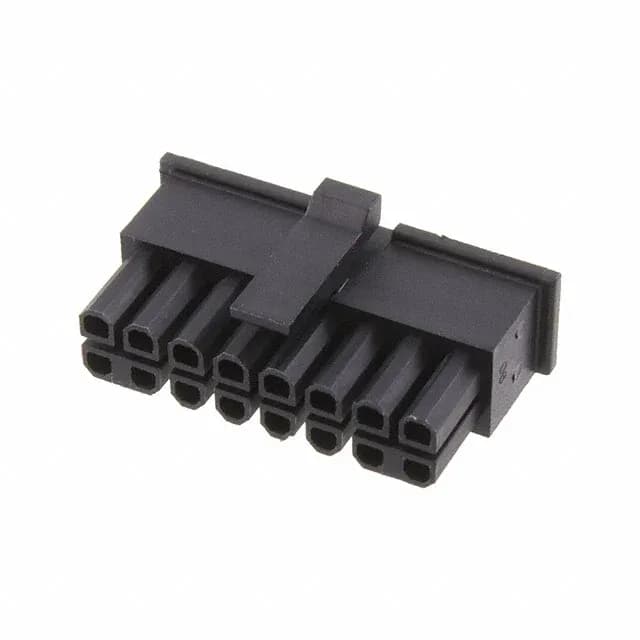

TE ELCON Micro 2204748-8, 16 Pos Receptacle Housing, 3.00mm

MPN2204748-8
Active

TE Connectivity ELCON Micro receptacle housing, 2204748-8, 16 positions, 2 rows, 3.00mm pitch, crimp termination, free-hanging, latch holder, black thermoplastic, -40 to 105°C.

$2.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesELCON Micro
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2204748-8 specifications
ParameterValue
SeriesELCON Micro
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions16

Product details

Sizing the BOM Line — Contacts and Mating Half

The first thing to note: this is a housing only. The latch holder locks the terminal in place and the secondary retention feature on the housing confirms full seat. Stock both halves or neither — an orphan receptacle with no header on the shelf ties up your BOM line.

The 16 positions in a dual-row layout (2 rows of 8) keep the housing width manageable for harness routing. If your BOM calls for 16 circuits, this housing matches the position count exactly — no empty cavities, no partial fill.

The black thermoplastic housing is a stocked production item, not a surplus odd lot.

Frequently asked questions

Is 2204748-8 active or obsolete?

The 2204748-8 is Active per the TE Connectivity lifecycle record. No phase-out or last-time-buy has been announced.

Are contacts included with 2204748-8?

No. The spec note states Contacts Not Included. You order the ELCON Micro female socket crimp terminals separately by wire gauge.

What is the pitch of 2204748-8?

The pitch is 0.118" (3.00 mm) on both position spacing and row spacing, giving a regular grid for the mating header footprint.
