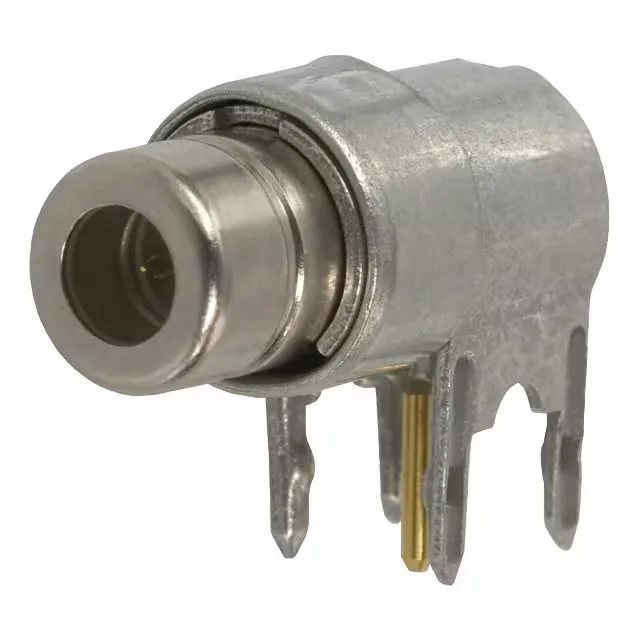

TE Connectivity 221014-1 SMB Jack, 75 Ohm, 4 GHz

MPN221014-1
Active

TE Connectivity SMB jack, male pin, 75 Ohm, through hole right angle, solder termination, gold center contact, nickel body, 4 GHz, 500 mating cycles, Bulk.

$30.1512Ref. price · indicative, final on quote
221014-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

221014-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeJack, Male Pin
Fastening typeSnap-On
Voltage rating335 V
Frequency - max4 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialBrass
PackageBulk
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMB Jack for 75 Ohm Signal Paths

The TE Connectivity 221014-1 is an SMB jack with a male pin centre contact, designed for 75 Ohm impedance systems. This puts it in the video, CATV, and baseband data signal path — not the 50 Ohm world of general-purpose RF. Rated to 4 GHz with 0.3 dB insertion loss, the signal pass-through is clean across the band.

Through-hole right-angle mounting with solder termination on both the centre pin and the shield. The polypropylene dielectric maintains the 75 Ohm characteristic through the launch — no air gap or loose tolerance that would shift the impedance at higher frequencies.

Frequently asked questions

How many mating cycles does 221014-1 have?

Rated for 500 mating cycles — the gold-plated centre contact and nickel body finish handle repeated mate/unmate without contact wear failure.

What is the mounting type for 221014-1?

Through-hole right-angle mounting — the connector sits parallel to the PCB, saving vertical space in the enclosure. Both the centre pin and shield are solder-terminated.
