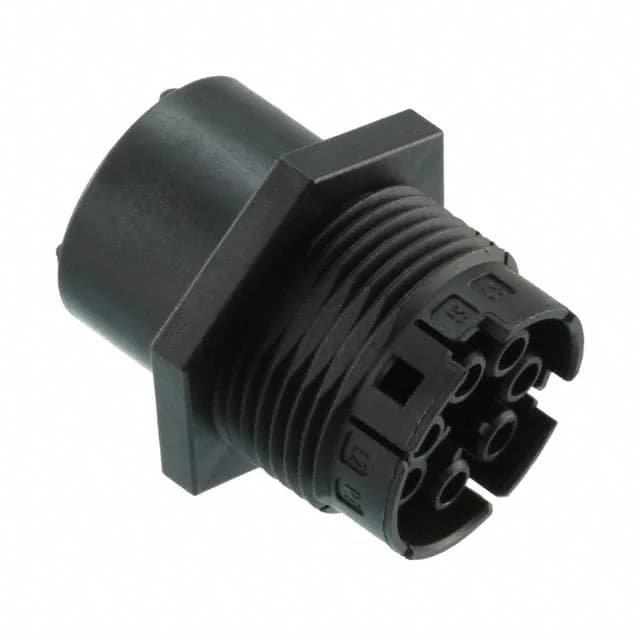

Sealed 7-Way Power Interconnect for Harsh Environments
Rated at 20A per circuit with a 400V voltage rating, this housing handles bus-level current in a compact 7-way package.
The 20A per-circuit rating is the headline number — each contact in this housing is sized for power distribution, not signal-level current. The IP67 seal is a functional spec: it means the mated connector pair withstands temporary immersion to 1 meter and resists dust ingress, which is a hard requirement for agricultural, marine, or off-highway vehicle harnesses.
Mating and Termination — What Goes Where
The panel mount feature allows the housing to be fixed to a bulkhead or enclosure wall, taking strain off the cable. The housing is keyed, which prevents mis-mating with a different-position or reversed receptacle — a practical safeguard in multi-connector harness assemblies.
