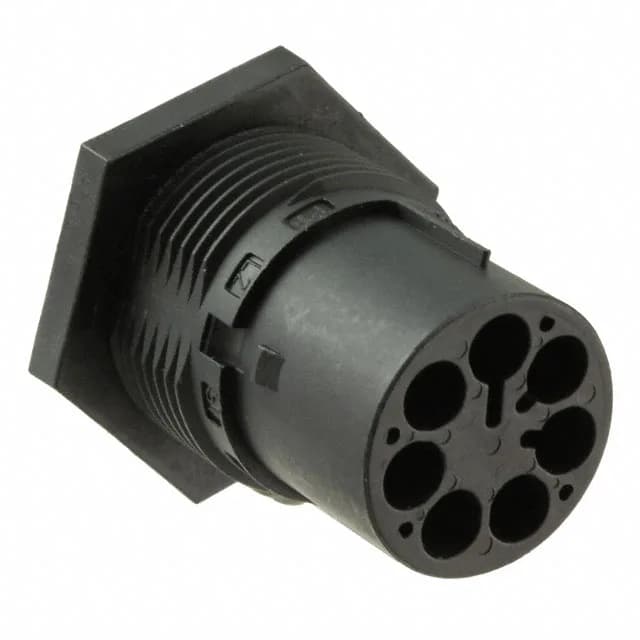

Panel-Mount Power Pass-Through, Sealed for Wet Environments
It accepts crimped pin contacts and mounts through a panel, making it a fixed bulkhead half for a sealed power harness. The housing carries a 20 A per-circuit rating at 400 V, with an IP67 seal that keeps the connection dust-tight and waterproof — suited for outdoor equipment, vehicle harnesses, or industrial cabinets where washdown or rain exposure is routine.
Sealing and Keying for Harness Reliability
The IP67 rating means the mated pair withstands immersion in 1 m of water for 30 minutes — not a splash rating, but a genuine submersion spec. The housing is keyed, so the mating plug can only be inserted in one orientation, which prevents a pin-to-pin misalignment on a multi-connector panel.
Termination and Mating Half
This is a receptacle housing for pin contacts — the female half that stays on the panel. The wires are terminated to loose crimp contacts (sold separately) and inserted into the housing. The mating half is the corresponding Nector M plug housing that accepts socket contacts. The panel-mount feature uses a locking nut or flange (depending on the variant) to secure the housing to the cutout, so the cable side can be repeatedly mated and unmated without stressing the panel wiring.
