TE Connectivity AMP Connectors 2213393-1 — Wire-to-Board Connectors

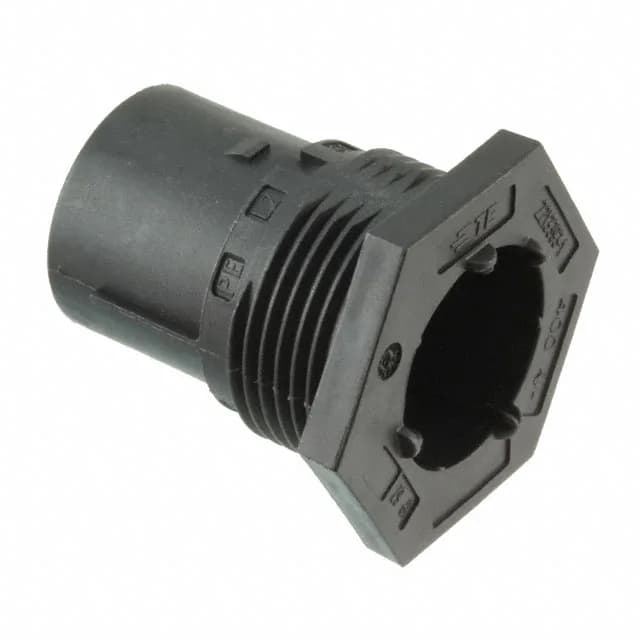

TE Nector M 2213393-1, 6-Pin Receptacle Housing, 20A IP67

MPN2213393-1
Active

TE Connectivity Nector M 2213393-1, Cable/Wire to Cable/Wire receptacle housing for pin contact, 6 positions, 20A, 400V, IP67, panel mount, crimp termination, black PBT housing.

$1.2697Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2213393-1 specifications
ParameterValue
SeriesNector M
MountingPanel Mount
Connector typeReceptacle Housing for Pin Contact
Voltage rating400V
Current rating20A
IP ratingIP67 - Dust Tight, Waterproof
Operating temperature-40°C ~ 85°C
Housing colorBlack
Housing materialPolybutylene Terephthalate (PBT), Glass Filled
StyleCable/Wire to Cable/Wire
PackageBulk
FeaturesKeyed
TerminationCrimp
Positions6

Product details

20 A per circuit in a sealed 6-position housing

The TE Connectivity Nector M 2213393-1 is a 6-position receptacle housing that accepts pin contacts for Cable/Wire to Cable/Wire interconnects. The IP67 rating — Dust Tight, Waterproof — means this housing seals reliably when mated with the matching plug, so a half-turn loose on a wet line won't drop the sensor signal.

This is a receptacle housing for pin contacts — it ships as the black PBT, glass-filled shell with the panel-mount features and the keying ramp. No contacts are included. The keyed feature prevents mis-mating with the wrong plug orientation, which is a real time-saver when you're routing harnesses blind behind a panel.

Frequently asked questions

Where can I buy 2213393-1 online?

Submit a request for quote to confirm current availability and pricing for your quantity.

Does 2213393-1 come with contacts?

No. The 2213393-1 is a receptacle housing only — it accepts pin contacts that must be ordered separately as crimp terminals.
