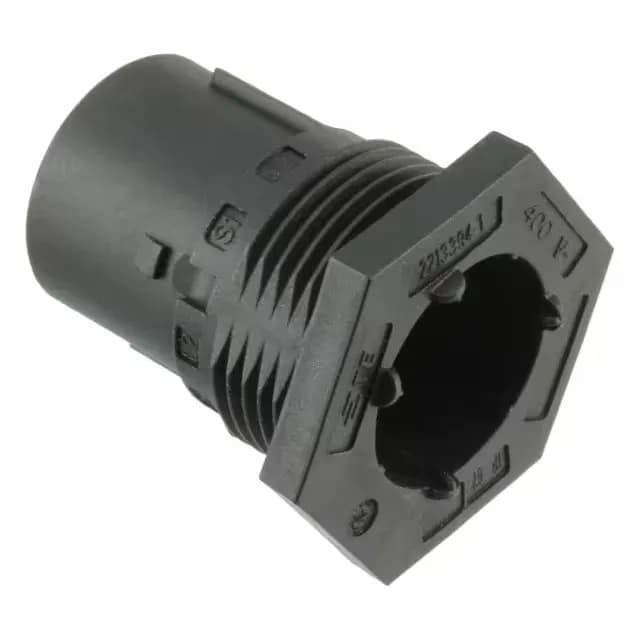

Sealed 5-Position Power Receptacle for Harsh Environments
This is a receptacle housing for pin contacts — it accepts crimp terminals and mounts to a panel, making it the fixed half of a sealed, field-serviceable connection. Rated 20 A per circuit at 400 V, this housing carries power-level current through a compact 5-position package. The glass-filled PBT material provides dimensional stability.
Panel-Mount Installation and Mating Half
This receptacle housing mounts to a panel, accepting the matching Nector M plug with pin contacts. Termination is crimp-style — the user selects the appropriate pin contact and crimp tool for their wire gauge, then inserts the terminated contact into the housing until it locks. The IP67 seal engages when the plug is fully mated, protecting the contact interface from water ingress and dust. For a sealed assembly, verify the mating plug also carries the IP67 rating and that the panel cutout accommodates the housing's sealing gasket.
