Obsolete — 221402-2 TE BNC Plug, 75 Ohm, Right-Angle for RG-59
The TE Connectivity 221402-2 is a BNC plug, male pin connector designed for 75 Ohm systems on RG-59, 59A, or 59B cable. It is officially listed as Obsolete, so this page serves as a cross-reference and sourcing guide for last-time-buy or surplus-channel stock. The connector body is nickel-finished silver, with a brass center contact plated in gold for corrosion resistance across the rated 500 mating cycles.
75 Ohm, 2 GHz — RG-59 Signal Path
The 75 Ohm impedance and 2 GHz frequency maximum suit video and baseband data links over RG-59 coax. Insertion loss is 0.15 dB, voltage rating 500 V.
Right-Angle Free-Hanging — Cable Routing Fit

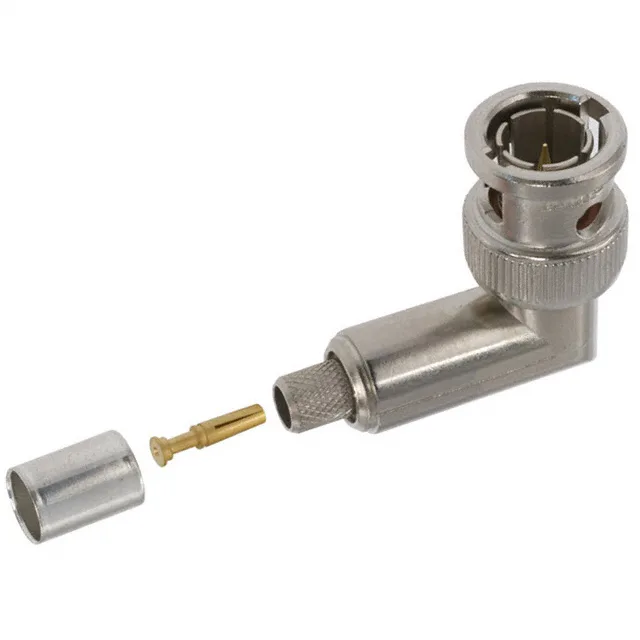

Kit Contents — Connector, Contact, Ferrule
The 221402-2 ships in Bulk as a 3-piece kit: one connector body, one center contact, and one ferrule. The center contact is crimped to the signal wire, the ferrule crimps over the braid, and the body screws together over the assembly. No separate ferrule or contact to source — it is all in the bag.
Sourcing Reality — Obsolete, Quoted to Order
TE Connectivity lists the 221402-2 as Obsolete. There is no official replacement order code on record from the manufacturer. For a BOM line that still calls out this exact number, the supply path is last-time-buy inventory or the surplus/broker channel. If you need a form-fit-function alternative, the closest match will share the 75 Ohm BNC interface, RG-59 cable group, and right-angle body; verify the bayonet lock and crimp termination match your assembly process before substituting.
