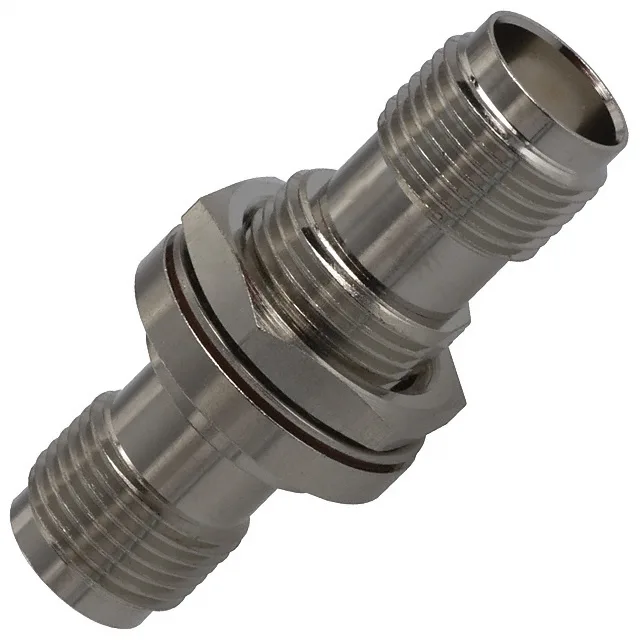

221500-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 221500-1 TNC to TNC Adapter, 50 Ohm

MPN221500-1
Obsolete

TE Connectivity TNC to TNC adapter, 221500-1, straight jack-to-jack, 50 Ohm, bulkhead panel mount, nickel-plated brass body, gold-plated center contacts.

$5.9000Ref. price · indicative, final on quote
221500-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

221500-1 Technical Specifications
ParameterValue
Adapter typeJack to Jack
Mounting typePanel Mount
Adapter seriesTNC to TNC
Fastening typeThreaded, Threaded
Conversion typeSame Series
Mounting featureBulkhead
Body materialBrass
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialPhosphor Bronze
StyleStraight
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Center genderFemale to Female
Center contact platingGold
Convert to (Adapter end)TNC Jack, Female Socket
Convert from (Adapter end)TNC Jack, Female Socket

Product details

The TE Connectivity 221500-1 is a TNC to TNC adapter — a straight, same-series barrel that joins two TNC jacks (female to female) in a single signal path. It is a bulkhead-mount panel adapter, built to pass an RF signal through a chassis wall without breaking the 50 Ohm impedance. Each unit ships with the connector, a lockwasher, and a nut for panel installation.

Sourcing and Lifecycle — What the Obsolete Status Means

The 221500-1 is listed as Obsolete.

Mating and Installation

Both ends are TNC jacks with threaded coupling, so the adapter mates with any TNC plug (male) on either side. The straight body keeps the signal path in line with the panel — the bulkhead flange seats against the panel face, and the included lockwasher and nut secure it from the opposite side.

Frequently asked questions

What is the impedance of the 221500-1?

The 221500-1 is a 50 Ohm impedance adapter, which matches the standard characteristic impedance for TNC interfaces used in RF and telecommunications equipment.
