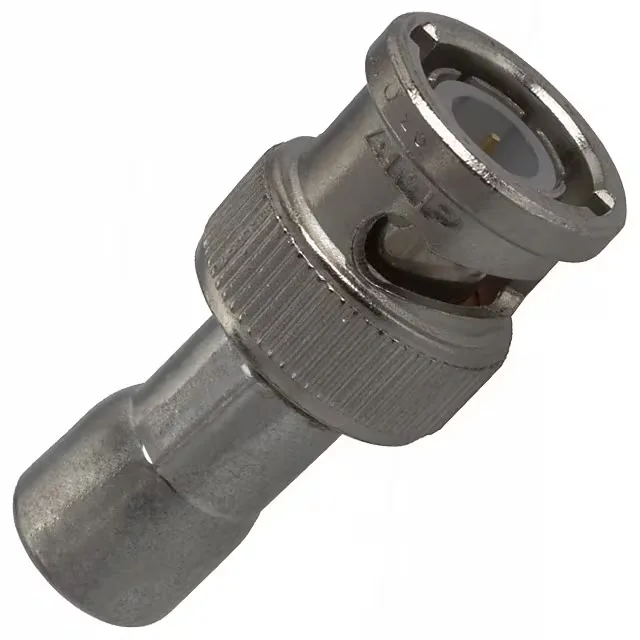

221629-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 221629-6 BNC Plug, 93 Ohm, Gold, Obsolete

MPN221629-6
Obsolete

TE Connectivity BNC series, 221629-6, plug male pin, 93 Ohms impedance, gold contact finish, nickel body, free hanging cap mount, bulk.

221629-6 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

221629-6 Technical Specifications
ParameterValue
Mounting typeFree Hanging, Cap
Connector typePlug, Male Pin
Body materialBrass
Contact materialBrass
Dielectric materialPolyethylene (PE)
PackageBulk
Impedance93 Ohms
Body finishNickel
Contact finishGold

Product details

BNC Plug, 93 Ohm — What This Connector Is

The 221629-6: It carries a 93 Ohm impedance rating, which sets it apart from the more common 50 Ohm or 75 Ohm BNC variants — this impedance is typically specified for certain video distribution, data acquisition, or legacy broadcast systems where the line impedance is matched to 93 Ohm cable.

93 Ohm Impedance — Why It Matters for the Signal Path

The 93 Ohm impedance is the defining electrical characteristic of this BNC plug.

Frequently asked questions

Is the 221629-6 BNC connector obsolete?

Yes, the TE Connectivity 221629-6 is officially listed as Obsolete. It is no longer manufactured and must be sourced through surplus or independent distribution channels.

What is a direct replacement for the 221629-6?

No official direct replacement order code has been published by TE Connectivity for the 221629-6. Any substitute must be verified against the original application's impedance (93 Ohms), mechanical fit (BNC plug, free-hanging cap style), and signal requirements. Sourcing through a broker or distributor who can cross-reference against the original spec is the recommended path.
