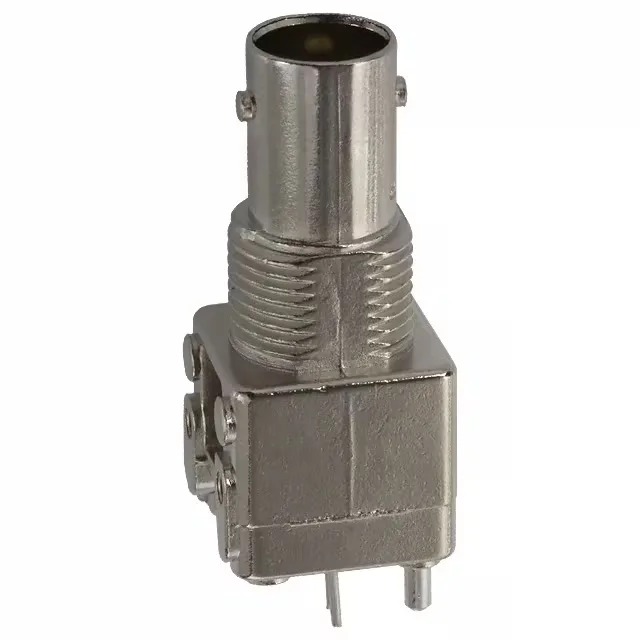

222132-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 222132-1 BNC Jack, 75 Ohm, 500 Mating Cycles

MPN222132-1
Active

TE Connectivity 222132-1 BNC jack, 75 Ohm, female socket, 1 port, panel mount bulkhead, bayonet lock, gold center contact, 500 mating cycles, 2 GHz max, includes lockwasher and nut.

$9.8932Ref. price · indicative, final on quote
222132-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

222132-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Kit Includes Panel Hardware

The 222132-1: This order code ships as a kit: one connector, one lockwasher, and one nut — everything needed for a front-side-nut bulkhead mount. The lockwasher and nut are included in the BOM line, so you do not need to source them separately. The mounting feature is bulkhead, front side nut, and the shield termination is solder, meaning the cable braid is soldered to the connector body for a reliable ground.

Electrical and Environmental Ratings

Rated at 500 V and 2 GHz maximum frequency, this jack handles baseband video and lower-frequency RF signals — not high-speed digital beyond 2 GHz. The contact termination is solder, so the centre pin is soldered to the cable centre conductor.

This is a standard-production BNC jack, not a phase-out or last-time-buy item.

Frequently asked questions

Where can I buy 222132-1?

Contact the storefront with your BOM for a same-day quote.

What is the impedance of 222132-1?

The impedance is 75 Ohm, standard for video, broadcast, and CATV applications.

Does 222132-1 include lockwasher and nut?

Yes, it ships as a kit including one connector, one lockwasher, and one nut — the panel hardware is included in the order code.

How many mating cycles does 222132-1 have?

Rated for 500 mating cycles, supported by the gold-plated centre contact.

What is the body material of 222132-1?

The body is zinc with a nickel finish.

What is the mounting type for 222132-1?

Panel mount, through hole, with a bulkhead front-side nut mounting feature.
