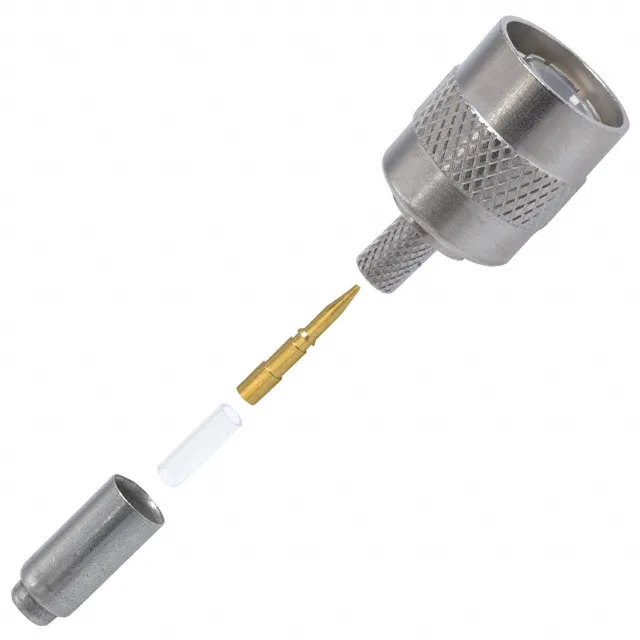

222506-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 222506-5 TNC Plug, 50 Ohm, 7 GHz, Obsolete

MPN222506-5
Obsolete

TE Connectivity Coaxicon TNC plug, 222506-5, 50 Ohm, DC to 7 GHz, crimp termination, nickel-plated brass body, gold-plated center contact, for RG-174/316 cable groups.

$2.4522Ref. price · indicative, final on quote
222506-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

222506-5 Technical Specifications
ParameterValue
SeriesCoaxicon
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Frequency - max7 GHz
Cable groupRG-174, 174A, 188, 188A, 316
Body materialBrass
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The TE Connectivity 222506-5 is a TNC plug from the Coaxicon series, designed as a field-mountable RF interconnect for RG-174, 174A, 188, 188A, and 316 cable groups. The kit ships as four pieces — one connector body, one contact, one ferrule, and one sleeve — so the buyer gets everything needed for one cable termination in a single order code.

This TNC plug is rated 50 Ohm nominal and 7 GHz maximum frequency.

Brass body with nickel finish, brass center contact with gold plating, polypropylene dielectric. Single-port, free-hanging (in-line) plug with a male pin.

Frequently asked questions

What is a direct replacement for the 222506-5?

No official direct replacement is listed by the manufacturer. Any substitute must match the 50 Ohm impedance, TNC plug interface, crimp termination, and compatibility with RG-174/316 cable groups; validate the replacement against the original application's frequency and environmental requirements before committing the BOM line.

What cable groups work with the 222506-5?

This plug is designed for RG-174, 174A, 188, 188A, and 316 cable groups. The kit includes the ferrule and sleeve sized for these cable diameters.
