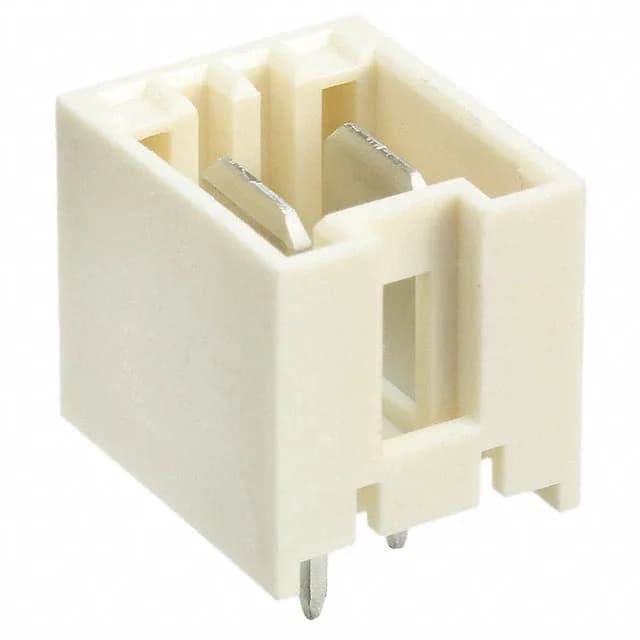

TE Connectivity AMP Connectors 2232043-2, a 2-position single-row shrouded header, 5.00 mm pitch, through-hole solder termination, natural PA66 housing rated UL94 V-0, with latch holder and glow wire compliance.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The 2232043-2 is a 2-position, single-row, shrouded header from TE Connectivity's 5.00 mm pitch board-to-cable/wire family.
This header accepts a mating receptacle with 5.00 mm pitch, 2 circuits, and a latch-compatible housing. Termination is through-hole solder; the post length is 0.138" (3.50 mm), which suits standard 1.6 mm PCBs. The contact post finish is tin, matching the solder process.
The 2232043-2 is an active part sourced through independent distribution. Submit an RFQ for a lead-time estimate.
Yes, the mating pitch is 5.00 mm (0.197"). The header mates with a 2-circuit receptacle that has a matching latch feature and 5.00 mm contact spacing.
