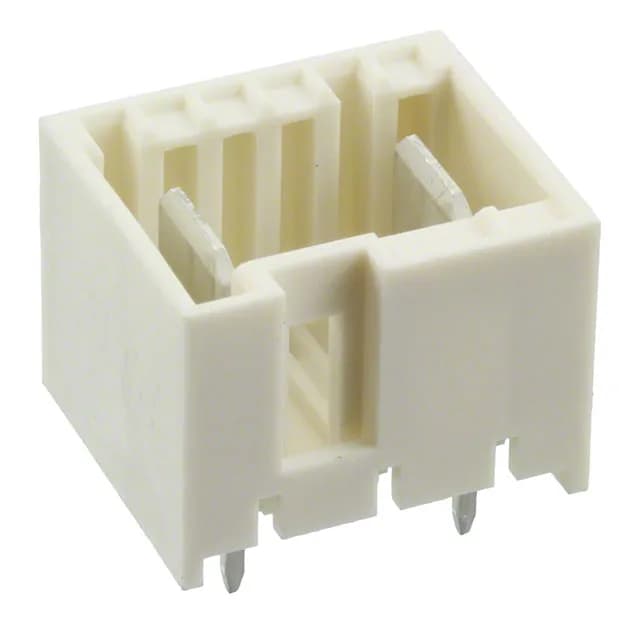

TE Connectivity AMP Connectors 2232511-3, Board to Cable/Wire Header, 3 positions (2 loaded), 5.00mm pitch, through-hole, shrouded - 4 wall, latch holder, tin contacts, UL94 V-0, -40°C ~ 120°C
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The 2232511-3 is an active-production TE Connectivity AMP Connectors pin header, 3 positions with 2 loaded, on a 5.00mm pitch.
Full 4-wall shrouding with a latch holder protects the pins and locks the cable plug in place. The insulation height is 0.504" (12.80mm) above the board.
0.197" (5.00mm) pitch between contacts.
Yes, it is ROHS3 compliant.
No direct pin-compatible alternative is listed in the same series. The 2232511 base product number covers variants with different position counts and loading — confirm your mating half before substituting.
