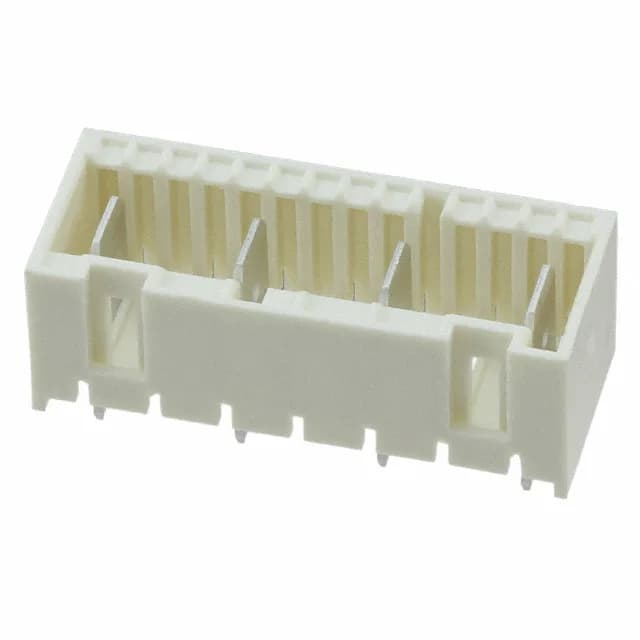

TE Connectivity AMP Connectors 2232511-7
MPN2232511-7
Active
$1.0916Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
