TE Connectivity AMP Connectors 2232532-5 — Pin Headers

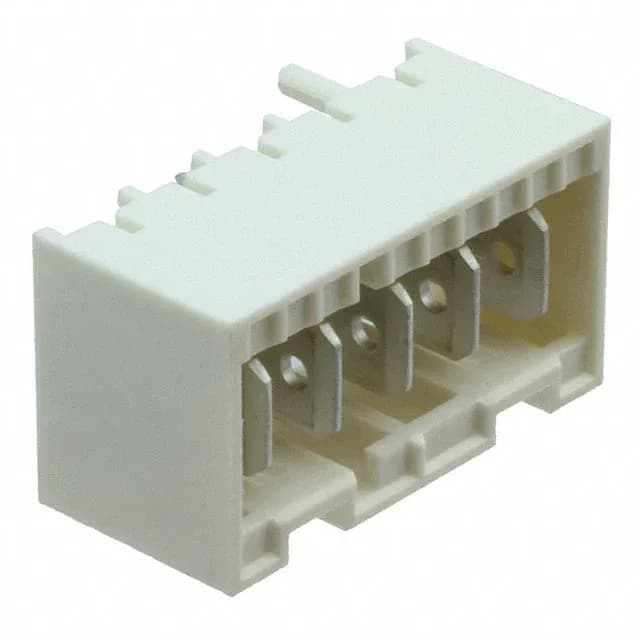

2232532-5 TE Connectivity 5-Pin 5mm Header

MPN2232532-5
Active

TE Connectivity AMP Connectors 2232532-5, Board to Cable/Wire header, 5 positions, 5.00 mm pitch, shrouded 4-wall, through-hole solder, UL94 V-0, glow wire compliant, tin-plated contacts.

$1.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2232532-5 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2232532-5 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Operating temperature-40°C~120°C
Contact materialBrass
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

2232532-5 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.197\" (5.00mm)
Positions5
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin

Product details

5.00 mm Pitch, 5-Position Shrouded Header

The 4-wall shrouding protects the rectangular tab contacts during mating and provides polarization to prevent misalignment. Rated at 250 VAC, the header suits general-purpose power and signal distribution inside equipment enclosures where the UL94 V-0 nylon housing meets flame-retardant requirements.

Glow Wire and Compliance Profile

The header carries glow wire compliance per IEC 60335-1, making it suitable for appliances and lighting fixtures where the connector must withstand a glow-wire ignition test without sustaining flame. The housing material is polyamide (PA) nylon rated UL94 V-0, and the entire assembly is ROHS3 compliant.

Production continues under the base number 2232532. Available in bulk packaging.

Frequently asked questions

Where can I buy 2232532-5 and what is the lead time?

The 2232532-5 is sourced through independent distribution against your RFQ. Submit a BOM quantity for a sourcing response.

What is the mating connector for 2232532-5?

The 2232532-5 mates with a TE Connectivity receptacle housing that accepts rectangular tab contacts on 5.00 mm pitch, single row, with a latch holder feature. Confirm the mating half part number against your harness design.

Is 2232532-5 glow wire compliant?

Yes, the header is listed with the feature 'Glow Wire Compliant', meeting the glow-wire test requirements for appliance and lighting applications.

What is the price of 2232532-5?

Pricing is confirmed at RFQ based on the order quantity and current market conditions. Submit a request for a competitive quote.
