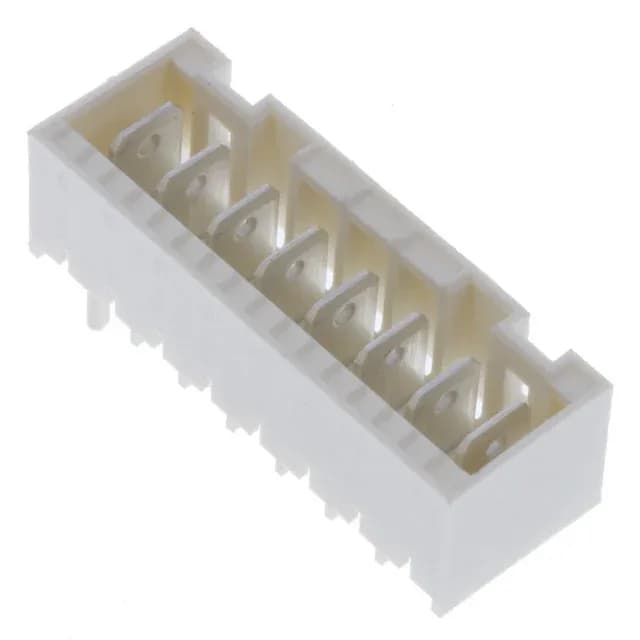

TE Connectivity AMP Connectors 2232532-8, Board to Cable/Wire header, 8 positions, 5.00 mm pitch, through-hole, shrouded 4-wall, latch holder, tin contacts, UL94 V-0, -40°C to 120°C.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The latch holder fastening type keeps the header locked to the mating cable receptacle, resisting vibration-induced disconnect in industrial or automotive harnesses. The board guide and glow wire compliant features add assembly alignment and fire safety margin.
Submit an RFQ for current pricing and lead time; we confirm availability at quote time.
Yes, 2232532-8 is ROHS3 compliant.
