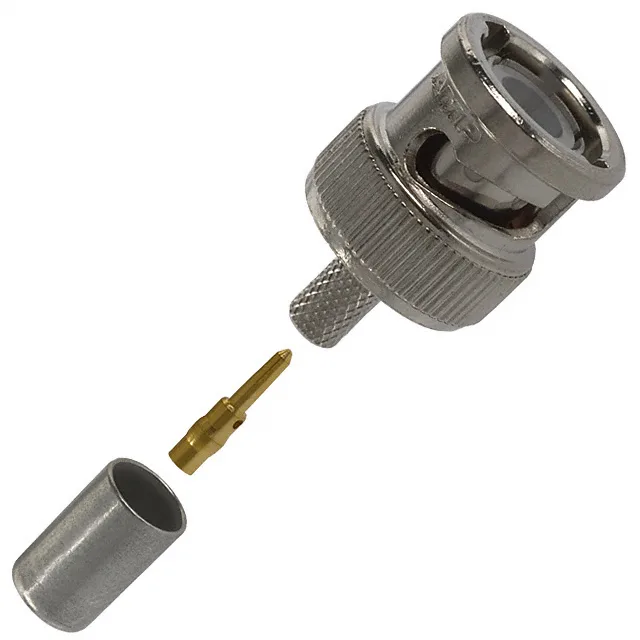

225395-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 225395-6 BNC Plug Kit, 50 Ohm, 4 GHz, RG-142

MPN225395-6
Obsolete

TE Connectivity 225395-6 BNC plug kit, 50 Ohm, 4 GHz, RG-142/142A/142B, crimp termination, nickel body, gold-plated centre contact, 500 mating cycles, bulk.

$12.1500Ref. price · indicative, final on quote
225395-6 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

225395-6 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-142, 142A, 142B
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The TE Connectivity 225395-6 is a BNC plug kit — a 50 Ohm male pin connector for RG-142, 142A, and 142B coaxial cable. It ships as a three-piece assembly: one connector body, one crimp contact, and one ferrule, all in a single bulk pack.

If your assembly can accept a different BNC plug for RG-142, a parametric cross-check against current TE BNC offerings is worth the time before committing the line.

Insertion loss is 0.2 dB, and the connector is rated to 4 GHz, so it covers the full BNC band through most of the usable range before the interface's own mode limits kick in.

Frequently asked questions

Where can I buy the 225395-6?

The 225395-6 is an obsolete part, sourced through surplus and broker channels. Submit your BOM quantity for a same-business-day quote.

Is 225395-6 obsolete?

Yes, the 225395-6 carries an Obsolete lifecycle status from the manufacturer. No official replacement order code has been published for this specific kit.

What cable group is 225395-6 for?

The 225395-6 is designed for RG-142, 142A, and 142B coaxial cable — a double-braid low-loss cable common in RF test and instrumentation runs.

What is included with the 225395-6?

The kit includes three pieces: one BNC plug connector body, one crimp contact (male pin), and one crimp ferrule. All are supplied in a single bulk package.

What is the impedance of 225395-6?

The 225395-6 is a 50 Ohm BNC plug, rated to 4 GHz maximum frequency with 0.2 dB insertion loss.
