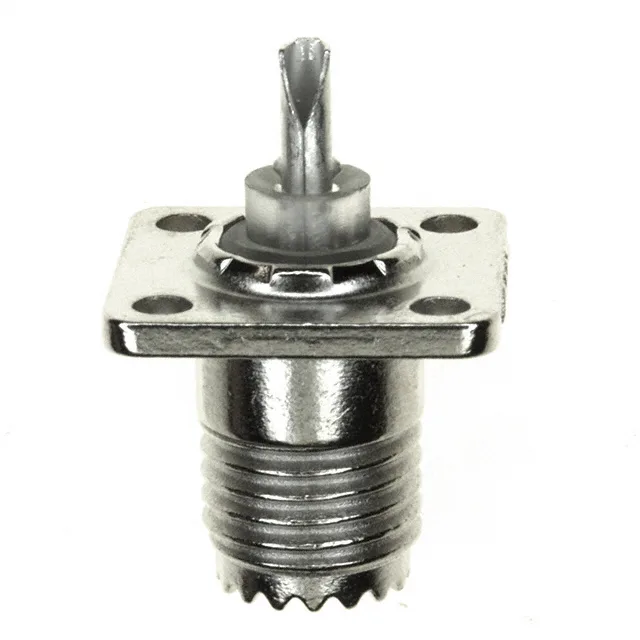

226601-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 226601-3 UHF Mini Receptacle, 335 V, 2 GHz, Obsolete

MPN226601-3
Obsolete

TE Connectivity UHF Mini receptacle, female socket, 1 port, panel mount with flange, solder cup termination, 335 V, 2 GHz, 500 mating cycles, nickel body, Bulk.

$3.1500Ref. price · indicative, final on quote
226601-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

226601-3 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max2 GHz
Mounting featureFlange
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesExtended Insulation
ImpedanceNon-Constant
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingTin

Product details

The 226601-3: It is a single-port, panel-mount connector with a flange mounting feature and threaded fastening, making it suited for fixed installations where a secure, vibration-resistant RF connection is needed.

The 2 GHz frequency ceiling sets the usable band — this connector handles VHF and UHF bands comfortably but will show increasing loss above that. The 500 mating cycles are a solid figure for a threaded connector — the nickel-plated zinc shell and tin-plated phosphor bronze centre contact hold up well under repeated field mate/unmate cycles. The solder cup termination requires hand-soldering the centre conductor and shield; no crimp tool needed.

The 226601-3 is listed as obsolete.

Frequently asked questions

What is the thread type for 226601-3?

The 226601-3 uses a threaded fastening type for mating, consistent with the UHF mini connector interface standard.
