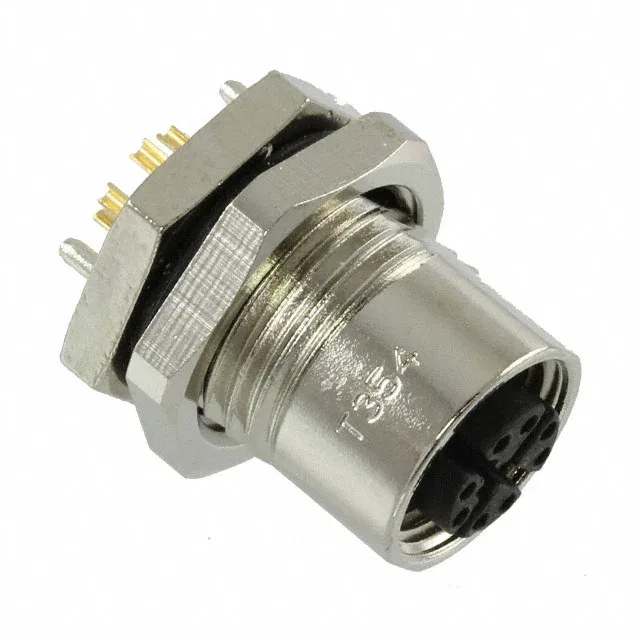

TE Connectivity AMP Connectors 2271195-1
MPN2271195-1
Active
CONN RCPT FMALE 8POS SOLDER CUP
$54.58Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 48V |
| Current rating | 0.5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 70°C |
| Color | Silver |
| Shell material | Zinc Aluminum Alloy |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded |
| Orientation | X |
| Termination | Solder Cup |
| Applications | Automotive, Industrial |
| Shell finish | Nickel |
| Positions | 8 |
| Shell size - insert | M12-8 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 19.7µin (0.50µm) |
