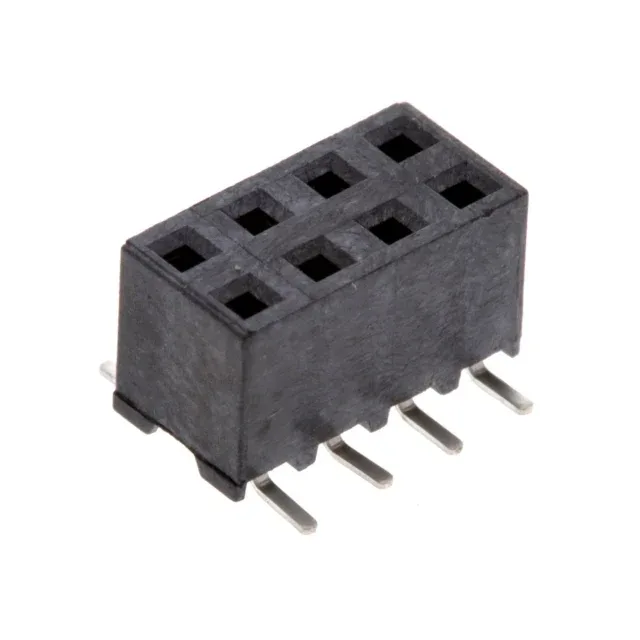

TE Connectivity AMPMODU 2307817-8, 8-position dual-row board-to-board receptacle, 2.00mm pitch, SMT, gold-plated mating contacts, rated 2 A per contact, 125 V, UL94 V-0 LCP housing, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 2A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.94µin (0.100µm) |
The 2307817-8: The 2 A per-contact current rating is typical for signal-level interconnect; the 125 V voltage rating covers most logic-level and low-power board interfaces.
It is ROHS3 compliant.
The base product number 2307817 covers the series; any alternative would need to match the 2.00 mm pitch, dual-row layout, SMT termination, and gold plating grade. Confirm the BOM position count and mating half before substituting.
