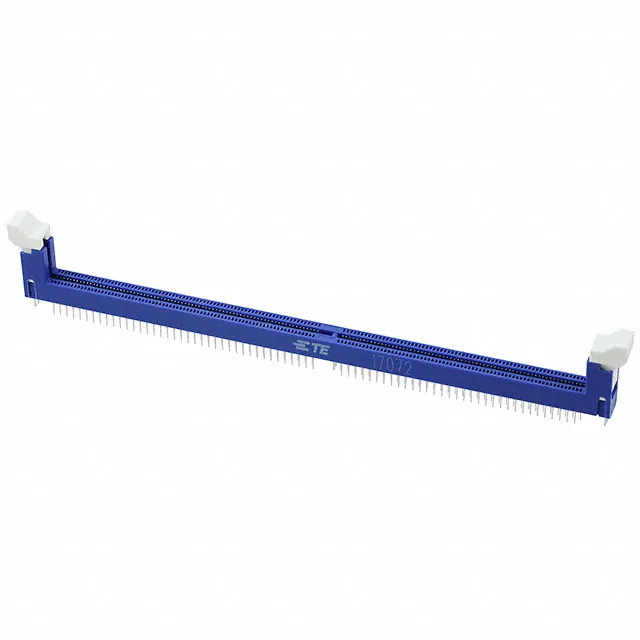

TE Connectivity AMP Connectors 2308107-6, DDR4 DIMM connector, 288 positions, through-hole mount, gold contact finish 15.0µin, board lock and latches, blue housing, tray package.
| Parameter | Value |
|---|---|
| Memory type | DDR4 SDRAM |
| Mounting | Through Hole |
| Mounting feature | Normal, Standard - Top |
| Connector type | DIMM |
| Color | Blue |
| Standards | MO-309 |
| Package | Tray |
| Features | Board Lock, Latches |
| Card thickness | 0.055\" (1.40mm) |
| Contact finish | Gold |
| Positions | 288 |
| Contact finish thickness | 15.0µin (0.38µm) |
The 2308107-6 is a 288-position DDR4 SDRAM DIMM socket from TE Connectivity, designed for through-hole mounting on a motherboard or memory riser card. It accepts standard DDR4 memory modules with a card thickness of 0.055" (1.40mm).
The latches secure the DIMM module in place, preventing accidental dislodging during shipping or field service.
The 2308107-6 has 288 positions, which is the standard pin count for DDR4 DIMM connectors.
Yes, the 2308107-6 is RoHS compliant.
The connector conforms to standard DDR4 DIMM pinout per JEDEC MO-309. The official TE Connectivity product drawing provides the detailed pin assignment and dimensional information.
