260-Position DDR4 SODIMM – Standard-Top Right-Angle Mount

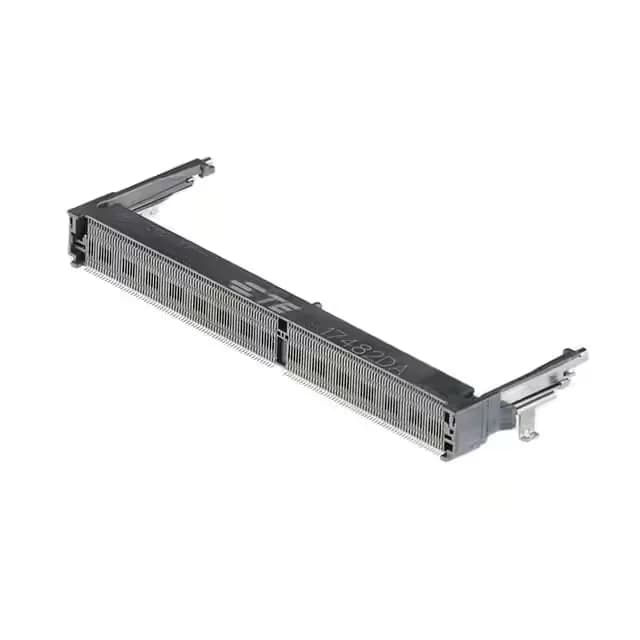

The 2309411-1: This is a 260-position DDR4 SODIMM connector from the TE AdvancedMC series, designed for surface-mount right-angle attachment with a standard-top mounting orientation. The 260 circuits match the JEDEC DDR4 SODIMM pinout, so it is the correct memory module interface for DDR4-based embedded and laptop designs. Board guide and latches are built into the housing — the guide aligns the module during insertion, and the latches lock it in place against vibration and shock. Contact finish is gold flash, which provides a corrosion-resistant mating surface suitable for moderate cycle counts typical of memory module interfaces.
Height and Board-Layout Fit
Right-angle orientation places the module parallel to the board, keeping the overall assembly low-profile for space-constrained enclosures.
ROHS3 compliant, meeting the latest EU restriction-of-hazardous-substances directive. CT works for prototypes and low-volume builds.
Peer Comparison: 2309411-1 vs 2309410-3
The closest functional alternative is 2309410-3: same 260-position DDR4 SODIMM form factor, same board guide and latches, same gold contact finish, and also active. Key differences: 2309411-1 has a standard-top mounting with 8.0 mm height, while 2309410-3 uses reverse mounting with a 5.20 mm height and a 25° insertion angle. Choose 2309411-1 for standard-top layouts needing the taller 8.0 mm height; choose 2309410-3 for reverse-mount, lower-profile, or angled-insertion applications.
