TE Connectivity AMP Connectors 2309413-1 — Pin Headers, Sockets & Housings

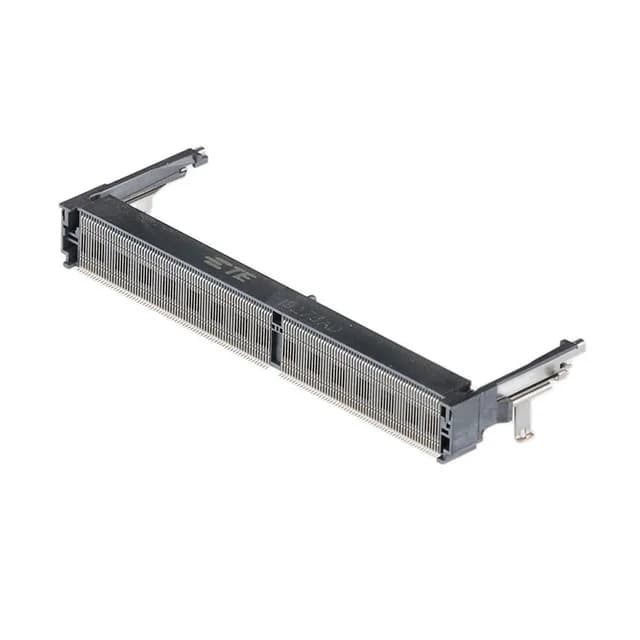

2309413-1 TE Connectivity DDR4 SODIMM 260P 9.2H Connector

MPN2309413-1
Active

TE Connectivity AMP Connectors, AdvancedMC series, DDR4 SODIMM connector, 260 positions, 0.362" (9.20mm) height, 25° angle insertion, Gold flash contact finish, Surface Mount, Black housing, Tape & Reel packaging.

$1.8100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAdvancedMC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2309413-1 specifications
ParameterValue
SeriesAdvancedMC
Memory typeDDR4 SDRAM
MountingSurface Mount
Mounting featureNormal, Standard - Top
Connector typeSODIMM
ColorBlack
Height0.362\" (9.20mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Latches
Card thickness0.047\" (1.20mm)
Contact finishGold
Insertion angle25° Angle
Positions260
Contact finish thicknessFlash

Product details

DDR4 SODIMM connector for embedded memory modules

This TE Connectivity 2309413-1 is a DDR4 SODIMM socket from the AdvancedMC series, designed to accept standard 260-pin DDR4 memory modules. The 0.362" (9.20mm) height and 25° insertion angle are typical for low-profile mezzanine installations where vertical clearance is tight.

Mating and board fit parameters

The connector accepts DDR4 SODIMM modules with a card thickness of 0.047" (1.20mm), the standard for these memory sticks. Gold flash contact finish provides adequate corrosion resistance for typical desktop and embedded service life, though for high-cycle applications a thicker gold plate is preferred. Surface mount termination with board guide and latches simplifies assembly and secures the module against vibration. The black housing is a visual identifier but electrically neutral.

Frequently asked questions

Is the 2309413-1 compatible with standard DDR4 SODIMM modules?

Yes. The 260-position SODIMM style and 0.047" (1.20mm) card thickness are standard for DDR4 memory modules. The 25° insertion angle is the common low-profile interface.

What is the height of the TE 2309413-1 connector?

The height is 0.362" (9.20mm), measured from the board surface to the top of the connector body. This is the mated stack height clearance required in your enclosure.
