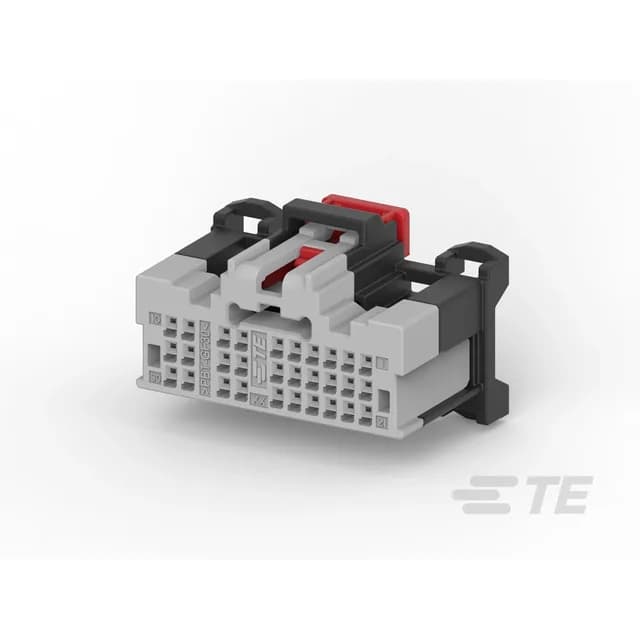

What This Micro Quadlok Receptacle Is
It uses a 2.00 mm pitch and a 3-row layout with a 2.60 mm row spacing, giving it a compact footprint that fits dense harness bundles without crowding the wire exit.
Key Features: CPA, TPA, and Crimp Termination
This housing includes both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) as built-in features. The CPA locks the mating pair together with an audible click, preventing partial separation under vibration. The TPA is a secondary retainer that locks each crimped terminal into its cavity — if a terminal isn't fully seated, the TPA won't slide home, giving the harness builder a positive go/no-go check before the connector leaves the bench. Termination is crimp-style, accepting the matching Micro Quadlok female socket contacts, which are ordered separately.
