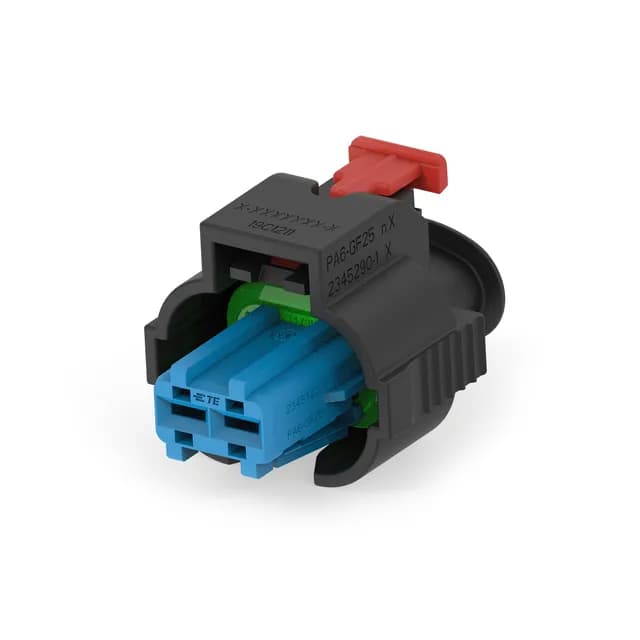

Sealed 2-Position Plug for Harsh Environments
It carries a 0.197" (5.00mm) pitch, wide enough to accommodate 2.8mm tab terminals with good creepage distance for the 12V/24V automotive electrical system. Key features include a built-in Connector Position Assurance (CPA) lock and a latch-lock fastening system. The CPA provides a secondary mechanical lock that confirms full engagement — critical in high-vibration harness runs where a partial mate can cause intermittent faults. The sealed construction (no IP rating specified in the listing, but the Superseal Pro family is designed to meet IP67 when mated with the correct header and gasket) protects against moisture, dust, and splash. The housing is moulded from glass-filled PA66 (Nylon 6/6), offering good dimensional stability and chemical resistance underhood.
The exact crimp terminal part number is not listed here, but the series standard is a tin or gold-plated socket rated for 20-18 AWG stranded wire. Order contacts separately; the housing ships without them.
