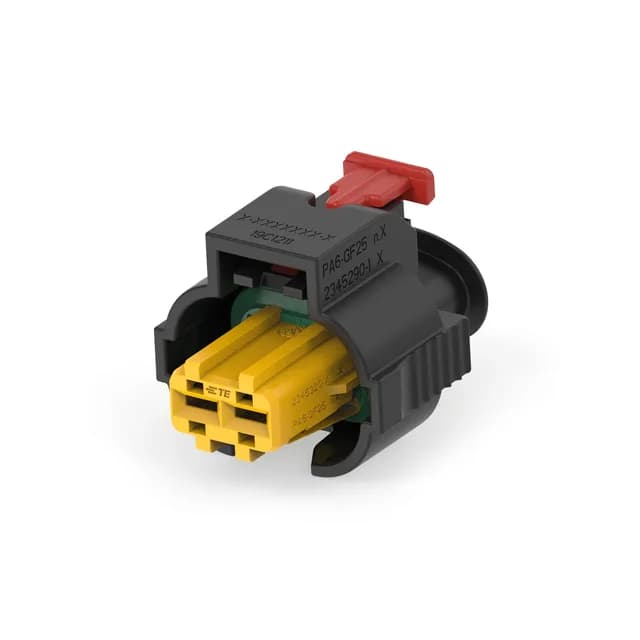

Sealed 2-Position Plug for Harsh-Duty Harnesses
It uses a 0.197" (5.00mm) pitch — wide enough to handle power-level creepage and accommodate larger-gauge wire. This is a female socket-type plug that accepts crimp terminals (sold separately — contacts not included). The sealed construction keeps moisture and dust out of the interface, making this housing suited for outdoor, washdown, and engine-compartment harnesses.
Pitch, Sealing, and Housing Material
The 0.197" (5.00mm) pitch is a standard size for power and signal connectors in the 5-10 A per circuit range — the spacing gives enough room for good creepage distances without making the connector body oversized. The sealed feature (no IP rating is stated in the listing, but the housing is designed for sealed mating with a matching receptacle and gasket) means this plug can be used in areas where splash or condensation is present. The black PA66 glass-filled housing resists fuel, oil, and common industrial solvents, and the glass fill adds stiffness at elevated temperatures so the latch and CPA mechanism hold their shape.
