5.00 mm Pitch Plug for TB Series Headers

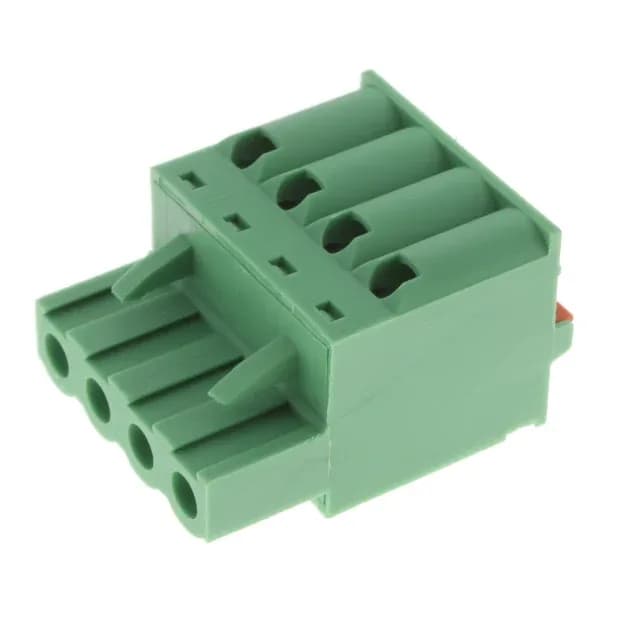

The 2350397-4 is a 4-position plug from TE's TB, Buchanan series, designed to mate with TB series headers. It is a plug with female sockets, meaning it accepts the male pins of a matching header. The free-hanging (in-line) mounting and 180° wire entry make it suitable for panel wiring where the cable runs straight into the connector.
Wiring and Termination with Push-In Spring
Termination is screwless — leg spring, push-in spring style. The push button actuator opens the clamp for wire insertion; the retention latch on the non-wire side holds the mated pair together in vibration environments. Wire strip length is 12-13 mm. The connector accepts 12-26 AWG (0.13-3.31 mm²) solid or stranded wire — the spring grips the full conductor cross-section without cold flow.
Active Sourcing and Compliance
It is RoHS3 compliant.
