TE Connectivity AMP Connectors 2386586-1 — Mezzanine & Stacking Connectors

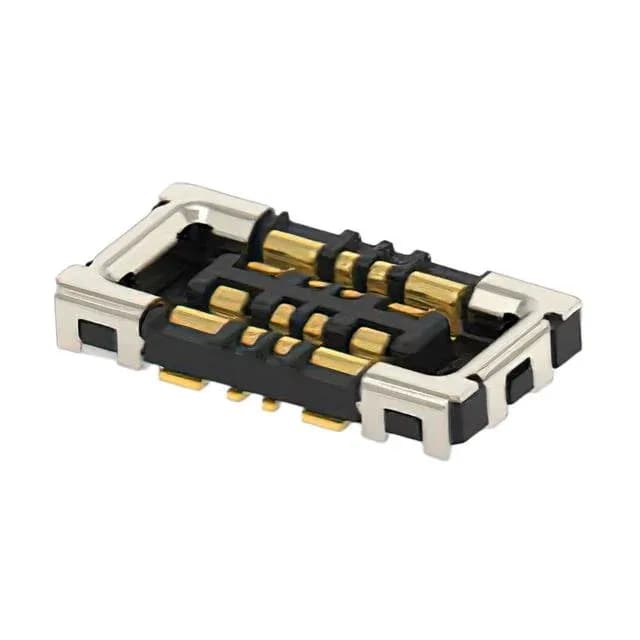

TE 2386586-1 Fine Pitch Receptacle, 8P, 0.40mm Pitch

MPN2386586-1
Active

TE Connectivity Fine Pitch receptacle, 8 positions, 0.016" (0.40mm) pitch, dual-row, SMT, gold contacts, 0.8mm mated stacking height, solder retention.

$0.2133Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2386586-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFine Pitch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2386586-1 specifications
ParameterValue
SeriesFine Pitch
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.028\" (0.71mm)
Mated stacking heights0.8mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions8
Contact finish thickness4.00µin (0.100µm)

Product details

0.40mm Pitch Mezzanine Receptacle for Tight Board Stacks

The mated stacking height is 0.8mm, with the connector standing 0.028" (0.71mm) above the board, making this part suited for ultra-thin device assemblies where vertical clearance is at a premium.

Surface Mount with Solder Retention

Mounting is surface-mount only, and the connector includes a solder retention feature — essentially extra metal tabs on the body that reflow to the board pads, adding shear resistance when the mating plug is inserted or under vibration.

Active and ROHS3 Compliant

Lifecycle status is Active, so there is no last-time-buy or obsolescence concern. The part is ROHS3 compliant, which covers the full ten restricted substances including the four phthalates.

Frequently asked questions

Where can I buy 2386586-1 and get a price?

Pricing and lead time are confirmed at quote time — submit a request with your target quantity for a current quote.

What is the mating height for 2386586-1?

The mated stacking height is 0.8mm, with the connector standing 0.028" (0.71mm) above the board surface.

What connector plugs into 2386586-1?

This is a receptacle with center strip contacts designed to mate with a matching Fine Pitch series plug of the same pitch and position count. The mating half is the corresponding plug from the same series, typically with a 0.8mm mated stack height.

Is 2386586-1 RoHS compliant?

Yes, it is ROHS3 compliant, covering all ten restricted substances including the four phthalates.
