TE Connectivity AMP Connectors 2386587-1 — Mezzanine & Stacking Connectors

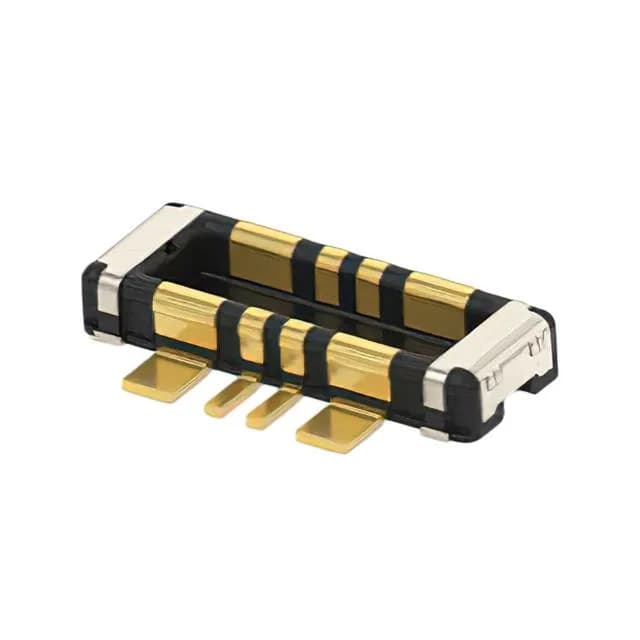

TE 2386587-1 Fine Pitch Plug, 8 Pos, 0.40mm Pitch

MPN2386587-1
Active

TE Connectivity Fine Pitch series, Plug Outer Shroud Contacts, 8 positions, 2 rows, 0.016" (0.40mm) pitch, Surface Mount, Gold contact finish, 0.024" (0.61mm) height above board, 0.8mm mated stacking height.

$0.2536Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2386587-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFine Pitch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2386587-1 specifications
ParameterValue
SeriesFine Pitch
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.024\" (0.61mm)
Mated stacking heights0.8mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions8
Contact finish thickness4.00µin (0.100µm)

Product details

The connector sits 0.024" (0.61mm) above the board and mates to a stacking height of 0.8mm, which sets the gap between parallel PCBs in a mezzanine stack.

Mounting and Retention

Surface-mount termination with solder retention features — the extra hold-downs keep the connector from lifting during reflow and resist shear forces from the mating cable assembly. The 0.024" (0.61mm) height above board is low enough that the connector fits under most shielding cans or tight enclosure lids. Packaged in Tape & Reel or Cut Tape, so it feeds straight into a pick-and-place line without manual handling.

Frequently asked questions

Where can I buy the 2386587-1 connector?

Submit a request for your target quantity and we will confirm availability and pricing at quote time.

Is the 2386587-1 RoHS compliant?

Yes, the 2386587-1 is ROHS3 compliant per the manufacturer's listing, meeting the current EU restricted-substance standards.

What is the mated stacking height of 2386587-1?

The mated stacking height is 0.8mm, with the connector sitting 0.024" (0.61mm) above the board surface.
